Waste tyre to diesel fuel recycling plant
Waste tyre to diesel fuel recycling plant is specially made mainly as the auxiliary equipment of our waste tyre/plastic pyrolysis plant. It can refine tyre fuel oil and plastic fuel oil got from the pyrolysis plant into diesel fuel oil.
However, Except tyre oil and plastic oil, this waste tyre to diesel fuel recycling plant can also refine waste motor/engine oil into diesel. This diesel fuel oil can be used for boilers, trucks, generators, and low speed engine like digging machine/road rolle/loading machine and so on.The normal processing capacity for our distillation plant includes 3T/D, 5T/D ,10T/D and 20T/D.
Waste tyre to diesel fuel recycling plant

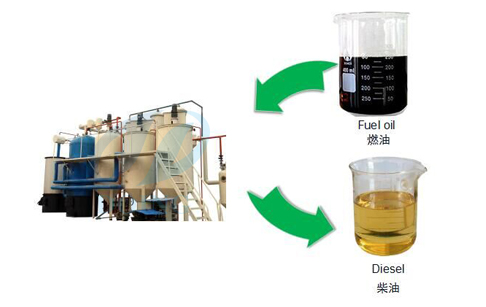

Feedstock& product of Waste tyre to diesel fuel recycling plant:
The feedstock can be tyre pyrolysis oil, plastic pyrolysis oil, waste engine oil, etc, the final product will be diesel oil.

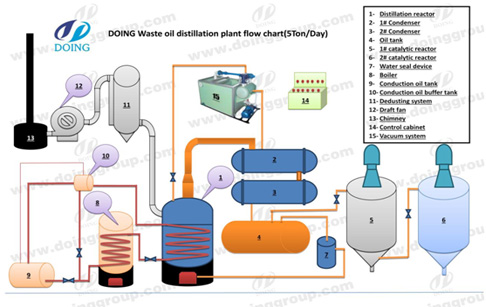

Working process of waste tyre to diesel fuel plant:
Working process of waste tyre to diesel fuel recycling plant
1. Put tyre oil/plastic oil/engine oil into distillation reactor with oil pump
2. Heating system works to heat waste oil over 170℃
3. Distillation oil gas produced and cooling down to pure distillation oil by condensers
4. After distillation, the distillation oil is pumped into odor-removal tank where catalysts used to remove the smell
5. Then oil go into color-removal tank for de-coloring with the special catalysts
6. Finally, you can get about 85% pure diesel fuel oil.

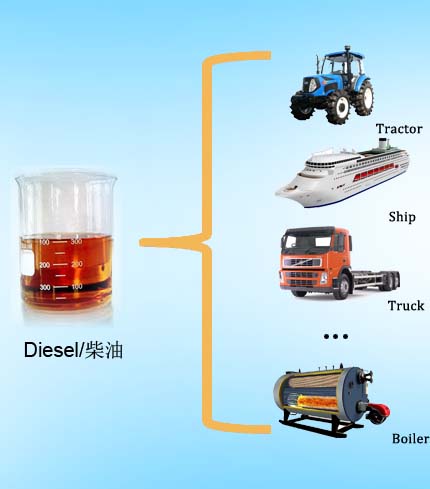

Diesel oil application]
Diesel application
Technical parameter of waste tyre to diesel fuel recycling plant :
Technical parameter of waste tyre to diesel fuel recycling plant | ||||||
NO | Items | Contents | ||||
1 | Equipment type | Boiler | Distillation Reactor | Heating furnace cover | Degumming reactor | Odor removal reactor |
2 | Application | Heating heat transfer oil | Distill raw material | Heat preservation | Degumming | Remove odor |
3 | Structural form | Vertical or Horizontal | Vertical | Vertical | Vertical | Vertical |
4 | Raw material | Heat transfer oil | Crude oil/ waste oil | Crude oil/ waste oil | Crude oil/ waste oil | |
5 | Operating pressure | Normal | Normal | Normal | Normal | Normal |
6 | Material of reactor | Mode:YYQW-240 | Q245R | Q235 | SS-304 | Q235 |
7 | Thickness | 16mm | 6mm | 6mm | 6mm | |
8 | Mode of heating | Direct | Indirect | None | None | None |
9 | Size | Φ1700mmx2200mmx16mm | Φ2000mmx1300mmx6mm | Φ1300mmx2000mmx6mm | Φ1300mmx2000mmx6mm |
