Waste tyre to oil pyrolysis plant

Date:2013-06-20 09:08:10 / Pyrolysis Plant

tyre to oil

Waste tyre to oil pyrolysis plant

DOING as a leading manufacture and offers the leading eco-friendly and cost-effective waste tyre to oil pyrolysis plant with the world class design and technology. DOING has never stop to develop the pyrolysis plant and experienced a lot of researches and experiments.

At the moment, DOING has already designed the waste tyre to oil pyrolysis plant with lower cost and higher fuel oil output. The waste tyre to oil pyrolysis plant combines the continuous and batch type to oil pyrolysis plant.

continuous pyrolysis plant

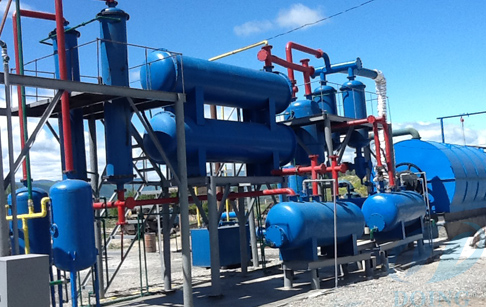

Continuous waste tyre to oil pyrolysis plant

The continuous waste tyre to oil pyrolysis plant is to feed the raw materials, such as tyre and plastic, on one side and discharge the carbon black continuously from the other side. However, the batch type is to feed the plant with a batch of raw material and take the process and start the next process after cooling down the machine and discharging the carbon black.

tyre pyrolysis plant

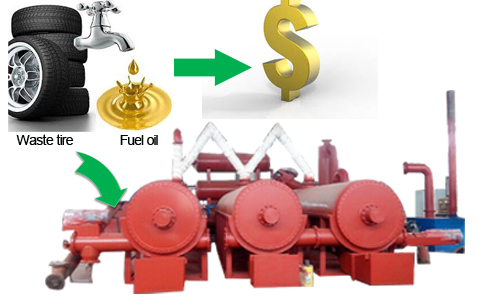

Waste tyre to oil pyrolysis plant

Both waste tyre to oil pyrolysis plant in DOING is based on the green technology (Pyrolysis) to achieving the environmentally friendly process, which is the excellent waste tyre management solution for tyre recycling.

Function of Doing waste tyre to oil pyrolysis plant convert waste tire/tyres or waste plastic into fuel and energy.

tyre to oil plant

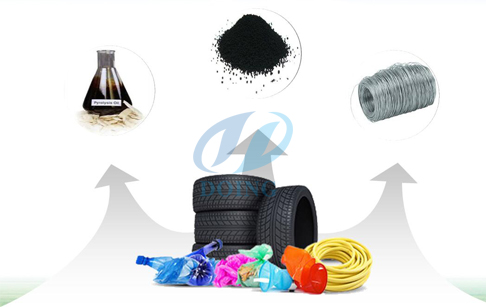

Waste tyre to oil plant raw material and final product

Raw material: waste tire/tyre, waste plastic, wsate rubber etc.
Final products: fuel oil, carbon black, steel wire and exhaust gas.

Working Process of Doing waste tyre to oil pyrolysis plant:

tyre to oil plant

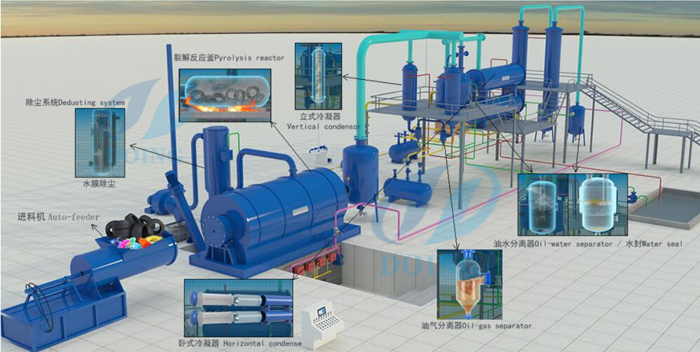

Working Process of waste tyre to oil pyrolysis plant

Firstly, make reactor rotate clockwise 0.4r/min, put raw material into reactor, close feeding door.
Secondly, burned the fuel material (coal, or wood, or natural gas, oil ) in the furnace. Reactor will be slowly heated, when the temperature reach around 180℃, oil gas will come out, then go to cooling system and liquid to oil. Some incondensable gas which can’t cool down will be lead to furnace through a gas pipe. It will be used to heat reactor. This can save your energy. Only the first 2 hours use energy for heating. After the first 2 hours mainly use gas, little energy is ok. After pyrolysis, all the oil gas come out from reactor, the temperature will fall down. Then make it rotate anticlockwise, carbon black discharging begin.Lastly, when the temperature deduce to 50℃, worker can opened the door of reactor take steel wire out.
Then can start the next batch.

Waste tyre to oil pyrolysis plant profit analysis

Take one batch 10t waste tyre to oil  pyrolysis plant for example:
Total Output:1. Crude oil: 45%*10t=4.5t2. Carbon black: 35%*10t=3.5t3. Steel wire: 13%*10t=1.3t

The cost and income Index of waste tyre to oil  pyrolysis plant:

No.ItemCost of Per Batch
110 tons of waste tires10T×USD 236/T=USD 2360
20.4 tons of coal0.4T×USD 126/T=USD 50.4
3Water and electricity200×USD 0.16=USD 32
4Workers Salary4×USD 16=USD 64
5Total CostUSD 2506.4
1Crude Oil10T×45%×USD 709=USD 3190.5
2Carbon Black10T×35%×USD 82=USD 287
3Steel Wire10T×13%×USD 34=USD 450
4Gross ProfitUSD 3927.5
5Daily Net ProfitUSD 3927.5-USD 2506.4=USD 1421.1
6Monthly Net ProfitUSD 1421.1×25 days=USD 35527.5
7Yearly Net ProfitUSD 35527.5×10 months=USD 355275
