Used tire recycling equipment

Date:2013-06-19 18:28:17 / Pyrolysis Plant / Give me the price/Leave a message

Used tire recycling equipment

To solve the used tires disposal problem, we have designed the used tire pyrolysis plant which adopts the latest pyrolysis technology.

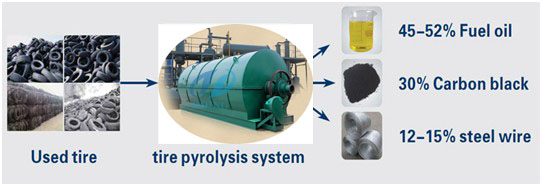

The used tire recycling equipment adopts the new green pyrolysis technology. Through the use of the used tire recycling equipment, used tire can be effectively converted to fuel oil, carbon black and steel wire. The oil from used tire recycling equipment can be widely used as fuel oil in industries such as steel and iron and boiler factories, ceramics, power or chemical industries etc. And it can be used for generators to get electricity. Carbon black can be used for making construction bricks with clay, and also can be used as fuel. Steel wire can be recycled into smelting plant.

The tire oil can be widely used as fuel oil in industries such as steel and iron and boiler factories, ceramics, power or chemical industries etc. or used for generators to get electricity. Carbon black can be used for making construction bricks with clay, or used as fuel. Steel wire can be sold directly or recycled to produce new steel products. There is also a little combustible gas produced in the pyrolysis process. The gas can be recycled to heat the reactor as fuel, which will save energy for the whole working process.

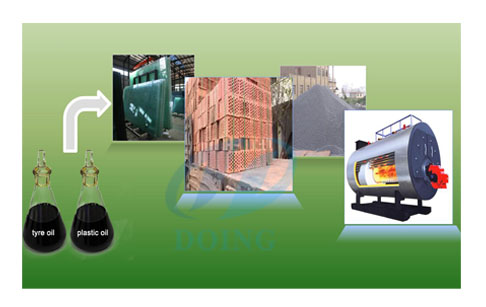

Fuel oil application

1.Fuel oil: oil from this plant can be used as industrial fuel for burning

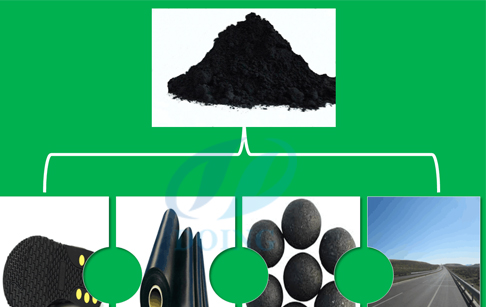

Carbon black application

2.Crude carbon black: crude carbon black from this used tire recycling equipment is crude oil, and it can be sold to the brick factory as internal combustion or to the factory needing it as raw materials, such as tyer, shoe, cable and sealant companies.
3.Steel wire: it can be sold to the iron and steel company directly

Advantages of our used tire recycling equipment:

1. No need shred tires, with auto feeder, could feeding whole tire directly.
2. Double feeding doors, bigger one for tires, smaller one for plastics.
3. Double catalyst chamber, and also add molecular sieve, it can absorb impurities, in this way avoid congestion and improve oil quality. Besides, two catalyst chambers could reach double effect of catalytic,decrease pressure and remove the dust from the oil gas.
4. Two horizontal condensers instead of 5 vertical condenser, and also the volume of one horizontal condenser can be equaled with 3 vertical condensers. Besides, the length has twice, so cooling effect will be better, in this way oil output can be guaranteed and raised.
5. Another two length cooling pipes, the cooling area can be equaled with one vertical condenser, in this way, the cooling result will be better than our forth generation.
6. Double anti-back fire device and two long cooling pipes. Double anti-back fire device will be more safety,and also make full recycling tail gas. The two long pipes can be equaled with one vertical condenser, it will cooling down the tail gas again, guarantee oil output.
7. The exhaust gas, it is white, no pollution, even if you put a white towel on it, you can not see any black. It can meet the emission standard of International required.
With horizonal condenser and excellent cooling system. Our waste tire pyrolysis plant will meet you requirements very well. Welcome to join us.



Technical parameter of used tire recycling equipment
	Items	Contents
1	Equipment type	DY-1-6	DY-1-8	DY-1-10
2	Raw material	Waste tire	Waste tire	Waste tire
3	Structural form	Horizontal  rotation	Horizontal  rotation	Horizontal  rotation
4	24-hour  Capacity	6 ton	8 ton	10 ton
5	Oil yield	2.7-3.3ton	3.6 -4.4ton	4.5 -5.5ton
6	Operating  pressure	Normal	Normal	Normal
7	Material of  Reactor	Q245R	Q245R	Q245R
8	Thickness of  Reactor	16mm	16mm	16mm
9	Rotate speed	0.4turn/minute	0.4turn/minute	0.4turn/minute
10	Total power	19KW	19KW	19KW
11	Mode of cooling	Water cooling	Water cooling	Water cooling
12	Cooling  area	100sqm	100sqm	100sqm
13	Kind of  transmission	Internal gear  drive	Internal gear  drive	Internal gear  drive
14	Noise dB(A)	≤85	≤85	≤85
15	Size of  Reactor(D×L)	2200×6000	2200×6600	2600×6600
16	Working form	Intermittent  operation	Intermittent  operation	Intermittent  operation
17	Delivery time	20days	20days	20days
18	Weight	27T	30T	35T
