In the waste oil recycling industry, businesses often face pain points like limited on-site space, high installation costs, and the need for flexible operation—especially for small workshops, on-site project teams, or enterprises with multiple locations. DOING free-installation waste oil distillation machine solves these challenges by integrating all core functions into a portable, pre-assembled system, turning low-value waste oil into high-quality diesel, helping customers save on installation costs and time. Below is a detailed breakdown of its design, advantages, working process, application.
The design of DOING free-installation waste oil distillation machine
DOING free-installation waste oil distillation machine is a modular, compact system integrates all core components (feed tank, reactor, condenser, oil tank) into a portable, skid-mounted frame. It's quick to operate and requires no complex on-site assembly. DOING offers installation-free waste oil distillation equipment with a processing capacity of 100kg/500kg.
It specializes in recycling various waste oils, including:
1.Used motor oil (from cars, trucks, construction machiner)
2.Waste industrial lubricating oil(from factories, power plants)
3.Pyrolysis oil (from plastic/tyre/sludge pyrolysis)
4.Black heavy oil (from refineries, shipping vessels)

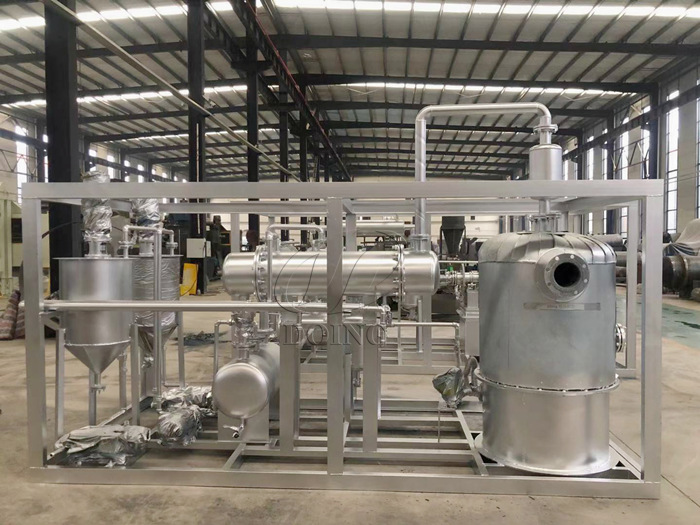

DOING Free-installation waste oil distillation machine
The working process of DOING free-installation waste oil distillation machine
1.Feed Preparation: Waste oil is pumped into the feed tank
2.Distillation: The oil is heated in the distillation reactor—light and heavy hydrocarbon fractions vaporize sequentially
3. Condenser: The oil vapor is first cooled in the condenser to liquid oil, where it is then purified using an acid or alkaline cleaning agent.
4. Further purification: The purified oil is then fed into a deodorization and decolorization tank for further purification, ultimately yielding clear, high-purity diesel.

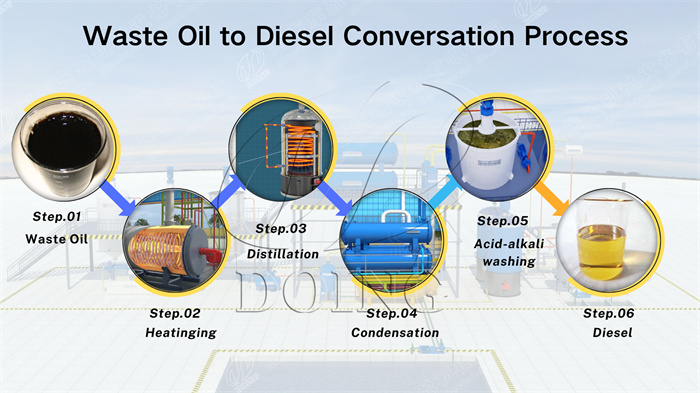

Free-installation waste oil distillation machine process
The advantages of DOING free-installation waste oil distillation machine
1.Ease of Installation: The entire system is factory-assembled and tested—arrives at your site as a single unit.
2.High Efficiency: Although the installation-free waste oil distillation equipment is small in scale, it utilizes the same advanced distillation technology as large-scale distillation equipment, ensuring high efficiency and high output. It is designed to minimize energy consumption and reduce operating costs.
3.High Mobility & Flexible Use: The skid frame is designed for lifting by crane or loading onto a truck. Businesses can move the machine between multiple sites.
4.Environmental: The environmental protection device purifies exhaust gas to acceptable emission standards.
5.Low Maintenance: The design of the machine is user-friendly, with minimal maintenance requirements, ensuring reliable long-term performance.
6.Safety Features: Equipped with safety systems such as pressure and temperature monitoring, the machine ensures safe operation and protects against any operational hazards.

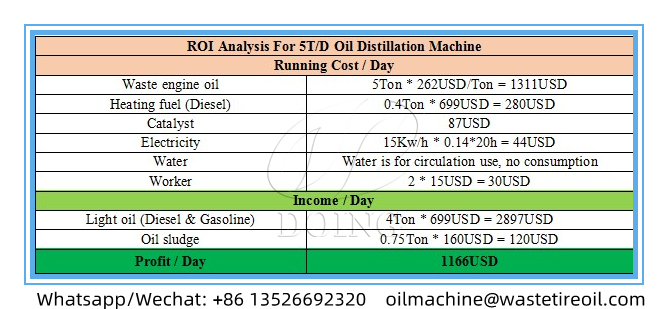

DOING waste oil distillation machine profits analysis
Applications of DOING free-installation waste oil distillation machine
1.Automobile Service Stations: Recycle waste motor oils and engine oils for reuse, reducing disposal costs.
2.Industrial Manufacturing: Recycle oils used in machinery and equipment to enhance sustainability and reduce waste.
3.Environmental and Recycling Companies: For businesses focused on recycling and reducing environmental pollution.
4.Heavy Machinery Owners: Diesel oil purified by DOING free-installation waste oil distillation machine can be used as a heating fuel, a viable alternative for heavy machinery such as tractors, trucks, and ships.
DOING free-installation waste oil distillation machine applications
DOING is committed to providing high-quality, durable, and efficient solutions for waste oil recycling. With more than 14 years experience in the field, our highly efficient, and environmentally friendly free-installation waste oil distillation machines are an ideal choice for any facility looking to reduce waste and increase revenue. If you have specific questions or need more detailed information, feel free to ask!
