Waste Plastic Pyrolysis Plant

Date:2018-03-26 15:37:02 / Pyrolysis Plant / Give me the price/Leave a message

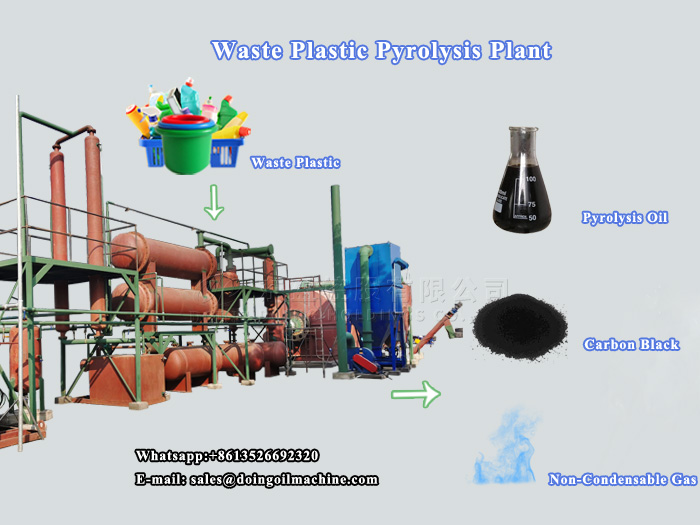

DOING waste plastic pyrolysis plant is an environmental protection system which adopt the pyrolysis technology and catalytic breakdown reaction to convert waste plastics into renewable resources, such as pyrolysis oil, carbon black, combustible gas and so on. The obtained pyrolysis oil can be used in boiler and generators directly as fuel, or come into high ranking diesel by our pyrolysis oil distillation plant. Other names of waste plastic pyrolysis plant include waste plastic pyrolysis machine, waste plastic recycling plant, plastic to oil machine, plastic to fuel conversion plant, plastic to oil conversion machine and so on.

plastic pyrolysis plantDOING waste plastic pyrolysis plant

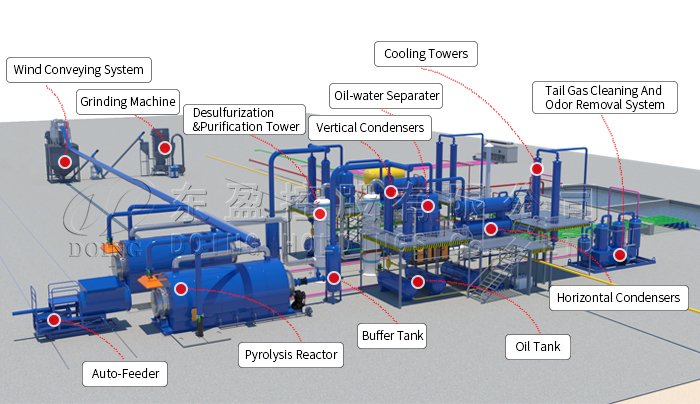

Main components of waste plastic pyrolysis plant

Doing Group's waste plastic pyrolysis plant mainly includes pyrolysis reactor, oil and gas separator, vertical/horizontal condenser, water seal, vacuum device, oil tank, dust removal and deodorization device, control cabinet, heating furnace, etc.

plastic pyrolysis plantMain components of waste plastic pyrolysis plant

Environmental protection configuration

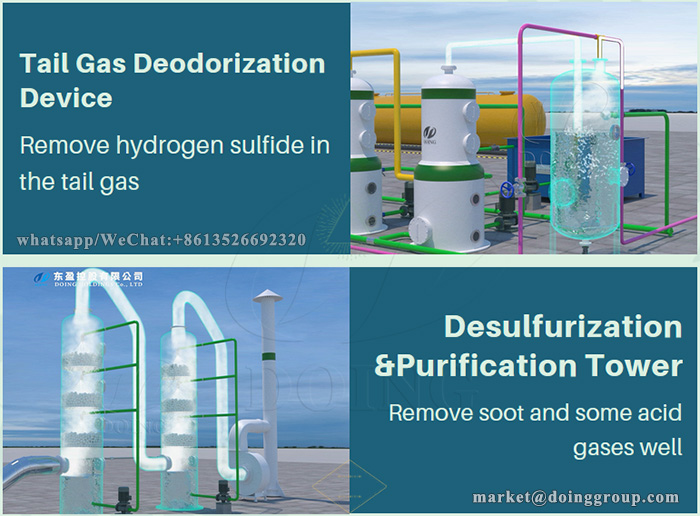

In order to meet the stringent environmental assessment standards in Europe and the United States and other countries, Doing Group has adopted the concept of exhaust gas and waste water recycling as far as possible to achieve zero emissions. Through water seals, oil-water separators, tail gas deodorization device and  desulfurization & purification tower, the separation of water, oil gas, and waste slag can be achieved, whereby oil gas are recovered, waste generated is recycled, and the entire production process is environmentally friendly.

plastic pyrolysis plantMain environmental protection configurations of waste plastic pyrolysis plant

Raw material and oil yield in DOING waste plastic pyrolysis plant

Raw materialPictureOil Yield

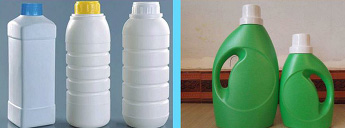

Pure PEpyrolysis plant

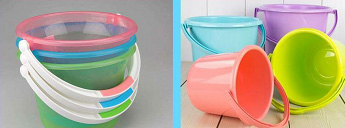

Pure PPpyrolysis plant

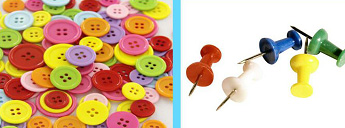

Pure PSwaste plastic pyrolysis plant
Pure ABSplastic pyrolysis plant

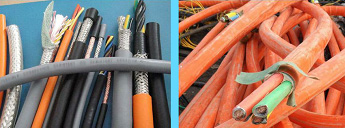

Pure Plastic cableplastic pyrolysis

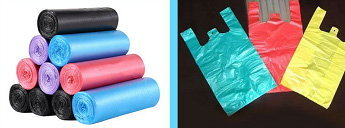

Plastic bagplastic pyrolysis

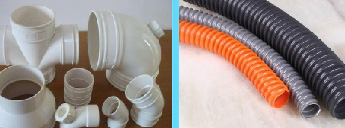

PVCplastic pyrolysis plant
Not available

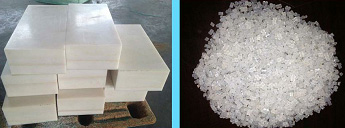

PETwaste plastic pyrolysis plant
Not available

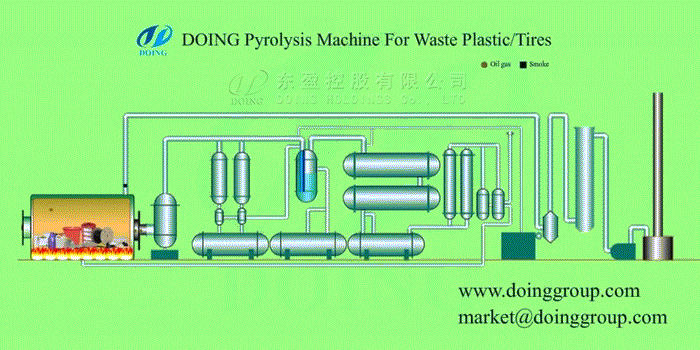

The main working process of waste plastic pyrolysis plant

1. Put raw material into pyrolysis reactor by an automatic pusher. If your waste plastics is wet, you should dry first. This way can save operation time. The pyrolysis reactor is supposed to be left 1/3 space for rotating more smoothly. Then make sure the door of feed port is closed.

2. Heat pyrolysis reactor gently by burning the fuel material (coal, wood, natural gas, LPG or plastic oil generated from last batch can be choosed). The oil gas will be released when the temperature reached 160℃ (The most oil is produced at 220℃-280℃).

3. The oil gas will flow into cooling system and some of them will be cooled into liquid oil in there. Then store the liquid oil into oil tank. The left incondensable gas through tail gas cleaning and odor removal and desulfurization & purification tower will be led to the heating furnace for recycling.

4. After all the above work has been done, cool down the reactor. Then discharge the carbon black by carbon black discharge device.When all the work has been done, you can start the next batch.

waste plastic pyrolysis plantMain working process of waste plastic pyrlysis plant

DOING waste plastic pyrolysis plant technical data

Technical parameter of waste plastic pyrolysis plant
1Equipment typeDY-1-6DY-1-10DY-1-12
2Raw materialWaste plastics
Waste plastics
Waste plastics
3Structural formHorizontal rotationHorizontal rotationHorizontal rotation
424-hour Capacity6 ton10 ton12 ton
5Operating pressureNormalNormalNormal
6Material of pyrolysis ReactorQ245RQ245RQ245R
7Thickness of pyrolysis Reactor16mm16mm16mm
8Rotate speed of pyrolysis Reactor0.4turn/minute0.4turn/minute0.4turn/minute
9Total power19KW19KW19KW
10Mode of coolingWater coolingWater coolingWater cooling
11Cooling area of condenser100sqm100sqm100sqm
12Kind of transmissionInternal gear driveInternal gear driveInternal gear drive
13Noise dB(A)≤85≤85≤85
14Size of Reactor(D×L)2200×60002600×66002800×6600
15Working formIntermittent operationIntermittent operationIntermittent operation
16Delivery time20days20days20days

Prepared by customer about waste plastic pyrolysis plant
1Coal(for choice)500kg/day
2Wood(for choice)800kg/day
3Natural gas(for choice)100-150kg/day
4Oil(for choice)300-350kg/day
6Water(recycled)60? /month
7Total power19kw
8Land area


Project case

Over the years, Doing Group adheres to the business philosophy of “Quality First, Credit Foremost”, providing the best pre-sales and after-sales service and the most professional technical support to our customers, controlling the product quality strictly and constantly improving the machine design and production technology. Now, our products have sold well in more than 60 countries and regions around the world, winning great praise and trust of our customers all over the world! Here are some projects of what we've installed.

Final products and their applications from waste plastic pyrolysis plant

Final productsPictureYieldApplication
Fuel oilplastic pyrolysis plant
45%1. Sold outward directly.
2. Added into the heavy oil generator toproduce electricity.
3. Convert into diesel pyrolysis oildistillation machine.
4. As fuel oil to heat the pyrolysis reactor.
Carbon blackplastic pyrolysis plant
40%1. Sold outward directly.
2. Briquetting for burning.
3. Refining to produce new tire, shoesoles and paint.
Incondensable gaswaste plastic pyrolysis
15%1. Back to furnace for heating pyrolysis reactor.
2. Stored as fuel for other heating.

After-sale Service of DOING company

1. We will reply your inquiry at the first sight. If there are some troublesome problems beside me, the reply will get to you no more than 24 hours.

2. We will provide the general plan of the project after we agree on the details and sign the contract.

3. If you are applying for related projects, we can provide relevant materials of waste plastic pyrolysis plant.

4. We will arrange engineers for your factory to finish the installation as well as training your workers after the equipment delivered to your factory. If for some irresistible factors our engineers are unable to reach the site, we can also provide video of the installation and commissioning of the equipment.
