Plastic to oil machine

Date:2013-06-26 14:04:40 / Pyrolysis Plant / Give me the price/Leave a message

plastic to oil

Plastic to oil machine

Before you intend to buy the machine that plastic into oil machine, the most important thing is that you have to choose a professional waste plastic to oil machine manufacturer. Henan Doing produced plastic to oil machine adopts the latest pyrolysis technology, which can convert plastic waste into fuel oil, carbon black, some combustible gas. Plastic to oil machine process waste plastic to oil First of all, waste plastic needs to be broken and dried; Then pretreated waste plastic will be conveyed to the moving horizontal plastic pyrolysis reactor through feeder system, it starts to pyrolysis and oil gas will be generated when temperature up to 500 degrees.

plastic to oil machine

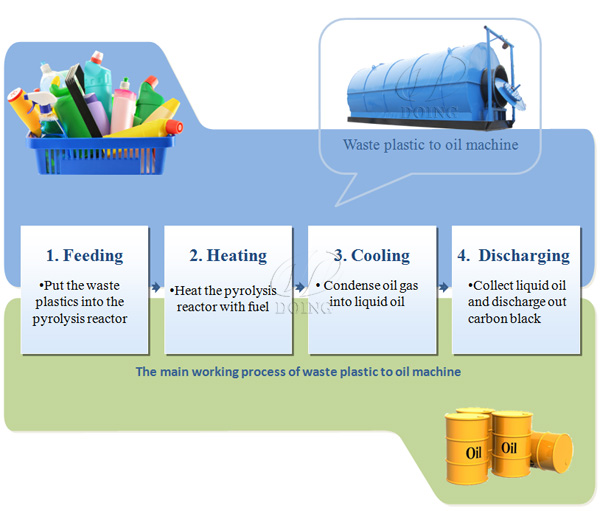

Plastic to oil machine working process

Then the oil gas will be cooling down by spray cooling system, it would be liquefied, go into the oil tank. And at the same time, some un-condensed gas comes into hot air circulation heating system by secondary fire retardant damper, it will be recycled for heating reactor as gas material. Exhaust gas will go to the strong spray de-dusting system for removing pollution, then let environmental gas go to the air. The pyrolysis slag emissions and recycled through second sealed discharging system.

Plastic to oil machine advantage

plastic to oil

Plastic to oil machine

1, Safety Design The plastic into oil machine for sale is equipped with mature safety devices, such as thermometer, pressure gauge, safety valve, electric control system. Hydroseal and Vacuum system will prevent exhaust gas from going back to condensers and reactor. Thus, unnecessary accident can be avoided.

2, Energy saving The extra gas that can not be liquid oil under normal pressure would be recycled to heat the reactor as fuel. The gas generated in the pyrolysis process has more caroric value, which will save a lot of energy for the whole working process.

3, Environment protection All parts are well-sealed, so air leakage can be avoided. In the dedusting system, three steps are used to dedust the hot smoke from pyrolysis reactor, which ensures the released gas is pollution-free and can be discharged into the air directly.

Waste plastic to oil machine final product application

Pyrolysis oil (Fuel oil  40 to 45%)

plastic to oil machine

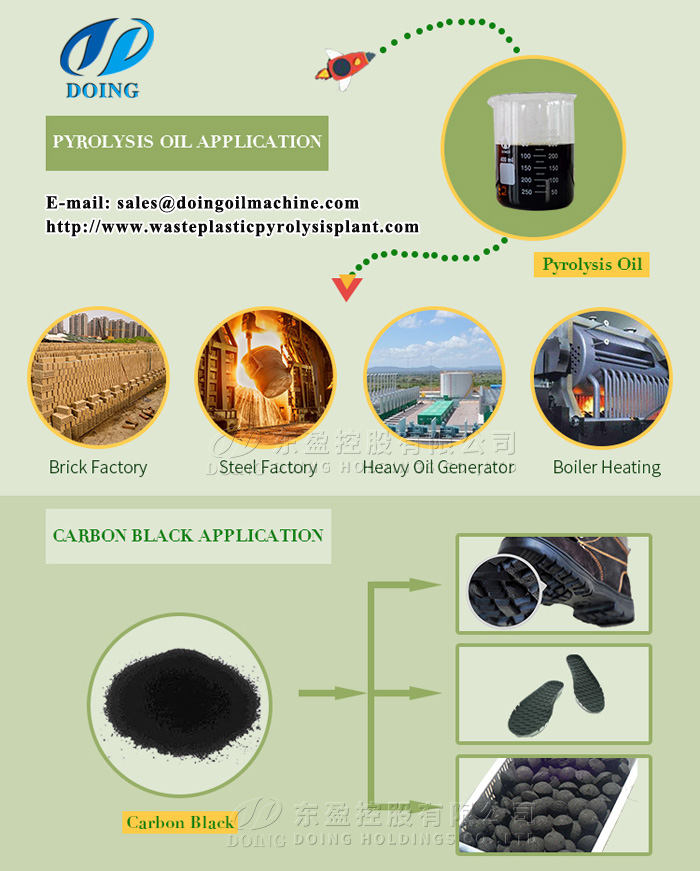

Fuel oil application

The essential product of tyre pyrolysis process is pyrolysis oil referred as fuel oil (40 to 45 % of total quantity feed) which is used as a fuel component for heating in fire chamber.

Pyrolysis oil has flash Point between 60 to 93.3 °C. Purest quality of pyrolysis oil comparable to industrial diesel: selling price comparable to industrial diesel LDO( light diesel oil)

Carbon Black

(30 to 35%) The vital product of pyrolysis plant is carbon black referred as "charcoal"(30 to 35% of total quantity feed).carbon black has Industrial and commercial use.

carbon black

Carbon black application
