How does waste tyre into oil pyrolysis machine works?

Date:2015-11-30 16:08:56 / Pyrolysis machine FAQ

waste tyre into oil pyrolysis  machine

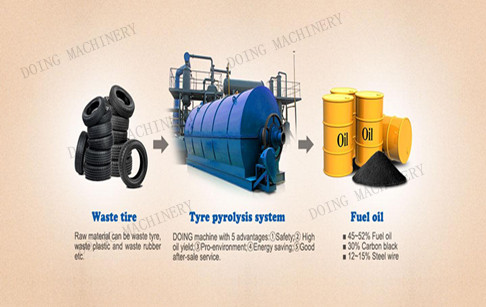

Waste tyre into oil pyrolysis machine

DOING revolutionary PYROLYSIS TECHNOLOGY can convert tyre to utra-clean and ultra-high heating value furnace oil, no matter it is clean or unwashed, unsorted waste tyres. After furthering refining with DOING waste oil distillation machine, the fuel oil got from waste tyre is converted into diesel used for generators, trucks, vans, ships,etc.
How does waste tyre into oil pyrolysis machine?


 pyrolysis machine


Waste tyre into oil pyrolysis machine working process


Put raw material into reactor by full-automatic feeding machine. The reactor is supposed to be left 1/3 space for rotating more smoothly. Then make sure the door of feeding machine is closed.
Reactor will be gently heated by burning the fuel material (coal, wood, natural gas, LPG or tire oil generated from last batch). The oil gas will be released when the temperature reached 100℃ (250-280℃ is the top output rate interval). Heavy oil gas separated by manifold is supposed to be liquefied and drop down into the heavy oil tank. The lighter gas will rise up to the oil condensers, be liquefied into oil and stored in the oil tank. The incondensable gas through dusulphuration and dedusting by hydroseal will be led to the furnace for recycling.
After all the above work has been done, cool down the reactor. Then the carbon black will be discharged automatically.
There possibly will be a little exhaust gas left, and you should not expel it until it has reached the emission standard.
Before starting next batch, make sure all the work has been done.

DOING PYROLYSIS TECHNOLOGY has successfully overcome the problem of white pollution in 23 countries which spread Africa, Asia, Middle-east, South America and Caribbean area.
