Waste plastic pyrolysis plant design

Date:2013-06-26 14:00:18 / Pyrolysis machine FAQ/ Give me the price/Leave a message

pyrolysis plant

Waste plastic pyrolysis plant

The plastic pyrolysis plants are designed to turn waste plastics into pyrolysis oil and carbon black. As a professional manufacturer of plastic pyrolysis plant design, Doing group plastic pyrolysis plants with the special design and good performance, which make them become more and more popular in the domestic and foreign markets. In general, a complete set of plastic pyrolysis plant mainly contains the following parts: they are Pyrolysis Reactor, Casing, Auto Feeder, Auto discharger system, Manifold, Heavy oil tank, Condenser, Oil storage tank, De-dusting system, cooling tower etc. And The following is a detailed description of these parts.

pyrolysis plant reactor

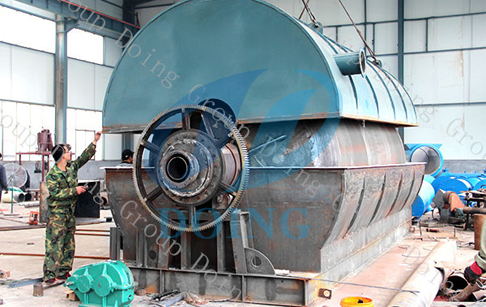

Waste plastic pyrolysis plant reactor

Pyrolysis reactor of waste plastic pyrolysis plant : It is the main part of the pyrolysis system, solid wastes like waste plastic, tire, rubber, medical waste and oil sludge can be processed. And oil gas will be generated when the temperature inside reactor reaches 100℃, 250-280℃ is the temperature of large amount of oil gas output.

Casing: It will be used for protecting the reactor and isolating the Oil based cuttings to get in direct contact with the flue gases.

Auto Feeder: It includes the enclosed belt conveyor, base, screw feeder, ball valve, hopper. Auto discharger system: combined with first discharger,steel wire and carbon black separator and 3 sets Secondary discharger.

Manifold: oil gas from reactor spiral move into manifold. Heavy oil (Oil contain fine dust) will be separated from the Oil gas and collected into slag oil tank (under manifold). And Oil gas will be channeled into condensing system.

Heavy Oil Tank of plastic pyrolysis plant : Collecting heavy oil from manifold. Auto heavy oil pumping.

Condenser: Tubular condenser is the most efficient condensing system. Heat exchanging area. Liquefied oil gas from manifold.

Oil storage tank: It can collect and purify extra un-liquefied oil-gas , so as they can be piped into furnace for heating. Save energy, burning without odor and dust. Water inside it will condense and will be separated by the Oil-water separator. The remaining oil will be collected in the Oil tanks.

De-dusting system: We have strictly de-dusting system to clean the emission, which can meet the local environment protection standard. The system has three layers, water washing, ceramic ring adsorption, water spray.
