Scrap copper wire stripping machine works
Scrap copper wire stripping machineof Doing is environmentally friendly machine,which can cush and process all kinds of waste copper wire and separated copper and plastic.
so ,the scrap copper wire stripping machine works?

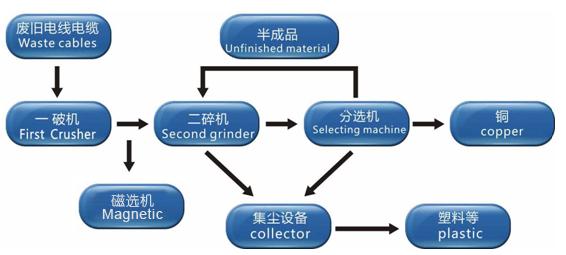

The works process of scrap copper wire stripping machine
1.The first cutting machine; the workers put the scrap copper wire into the cutting machine;
2. Magnetic conveyor; to convey the scrap copper wire that being cut in previous cutter to the No. 2 crushing machine.
3. The second crushing machine; this machine separates the plastic and metal totally. At the bottom, there is installed sieve which can control different sizes materials.
4.Air blower; transporting the small particles that from No. 2 crushing machine to grading machine by using wind and wind pressure.
5.Grading machine; it is the core of the machine. It separates the copper and plastic skin totally. Although it is with complex structure, it has the features of convenient operation.
6.Bag dust-separator; It collects the dust from grading machine through dust blower. The upper part has 12 filter bags.
7.Air rock; it is in the bottom of the dust collector. It is the air rock that timing operation in order to discharge the dust.
8.Screw conveyor; conveying the dust that from the dust collector to the external of the whole equipment.
9.Control cabinet. It controls all the scrap copper wire stripping machine in the whole equipment. It has the functions of emergency stop and timer.
