Used tire cutting machine

Date:2015-08-05 16:59:58 / Tire cutting machine

Company Information:

Henan Doing Mechanical Equipment Co, Ltd. is a professional manufacturer of tire cutting machine; we have been in this field for 10 years. With rich experiences, our engineer team helps customers design different tire cutting machine with different capacities.

About used tire cutting machine

If you want to get diesel from waste tires by pyrolysis machine, the first step is to cut the waste tires into pieces, into powder, as a result, the following four types of machine are what you need.

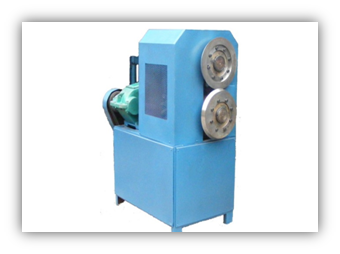

1.  Tire sidewall cutter

Application of circle  cutter

Circle cutting machine is used to separate the tire side from the whole tire. Now the steel wire from tire sides of vacuum tires is thick and hard to curve, so before feeding the waste tires into reactor, it is better to cut the tire sides down. Besides, this part of tire has good value, circle cutting machine helps collecting these thick steel wires.

Technical parameters of circle cutter

Model

Production

Power

Size of Tires

Dimension

QKF850

   2.01ton/h

2.2KW

φ825~1200mm

1200*850*1405mm

Application of rubber strip cutting machine

Cutting strips machine is used with circle cutting machine and could cut the tires without tire sides into strips.

Technical parameters of rubber strip cutting machine

Model

Production

Power

Size of Tire

Dimension

QT380

1ton/h

4KW

≤φ1200mm

1330×700×1580mm

3.Block cutting machine

Application of  block cutting machine

Cutting block machine is used with cutting strips machine and cut the tire strips into blocks.

Technical Parameters of block cutting machine

Model

Power

Weight

Size of Tire

Dimension

QK200

7.5KW

450KG

≤φ1200mm

800*810*1070mm

4.Hydraulic Cutting Machine

Application of hydraulic cutting machine

Hydraulic cutting machine is used to process the waste tires and cut the tires into pieces and meets the demands of clients who have big size tires.

Technical Parameters of hydraulic cutting machine

Model

Power

Weigh

Size of Tire

Dimension

QDY 700

5.5KW

1300

φ800~1200mm

1720*750*1880mm
