With the rapid development of automotive industry and highway, more and more "black pollution", which are formed by waste tires, are threatening us.When waste tires are hazardous to our living environment of the time, nobody would have thought the all body is treasure of waste tire. They occupy large quantity of land; they can be degradated only after 500 years' land filling, they impair the growth of vegetation,
propagate mosquitoes, spread diseases; they are easily to cause fire, the thick black smoke, sulfur dioxide and other harmful gas produced after burning will pollute the atmosphere seriously, and they will damage people's health. Even if invested heavily to landfill and incineration, they can also bring secondary pollution which cannot be eliminated, and they will destroy the natural environment, at last they have
become black rubbish which seriously prevent the sustainable development of the modern society.
How to process the waste tire without pollution plays an important role in environmental protection.
Doing company provides you waste tyre rubber powder line

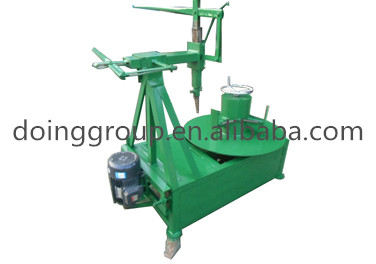

Waste tire circle cutting machine
Application of circle cutting machine
Circle cutting machine is used to separate the tire side from the whole tire. Now the steel wire from tire sides of vacuum tires is thick and hard to curve, so before feeding the waste tires into reactor, it is better to cut the tire sides down. Besides, this part of tire has good value, circle cutting machine helps collecting these thick steel wires.
Technical parameters of circle cutting machine:
Model | Production | Power | Size of Tires | Dimension |
QKF850 | 2.01ton/h | 2.2KW | φ82～1200mm | 1200*850*1405mm |

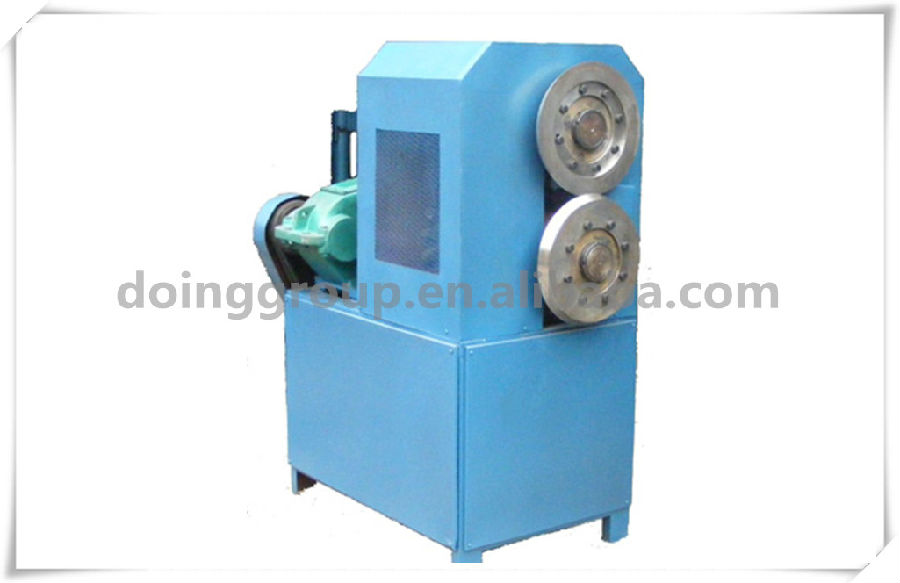

Rubber strip cutting machine
Application of rubber strip cutting machine Cutting strips machine is used with circle cutting machine and could cut the tires without tire sides into strips.
Technical parameters of rubber strip cutting machine
Model | Production | Power | Size of Tire | Dimension |
QT380 | 1ton/h | 4KW | ≤φ1200mm | 1330×700×1580mm |

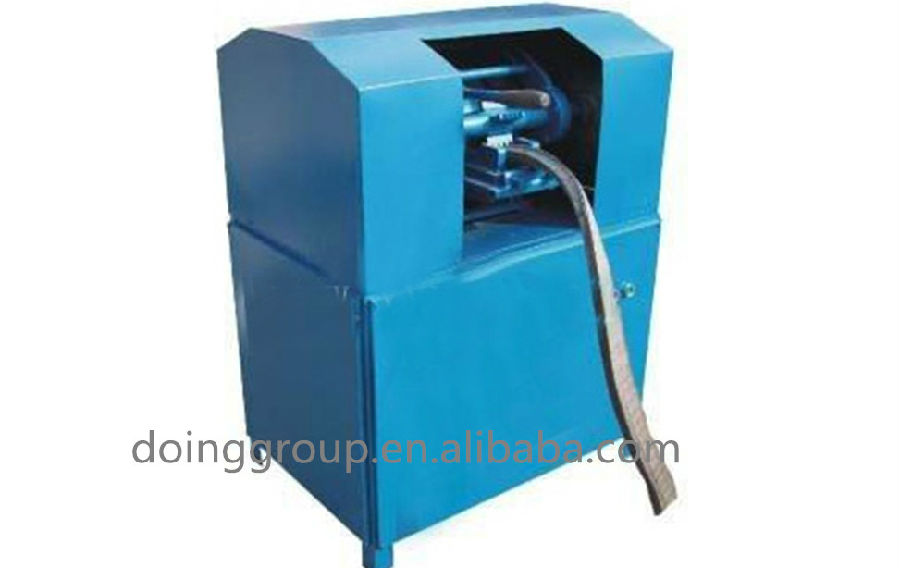

Block cutting machine
Application of block cutting machine
Waste tire block cutting machine is utilized to process the rubber stripes into rubber blocks with a certain size, which is good for latter production and improving work efficiency. It is generally used along with bar cutter, and it is essential equipment for waste tires processing.
Technical parameters of block cutting machine
Model | Power | Weight | Size of Tire | Dimension |
QK200 | 7.5KW | 450KG | ≤φ1200mm | 800*810*1070mm |

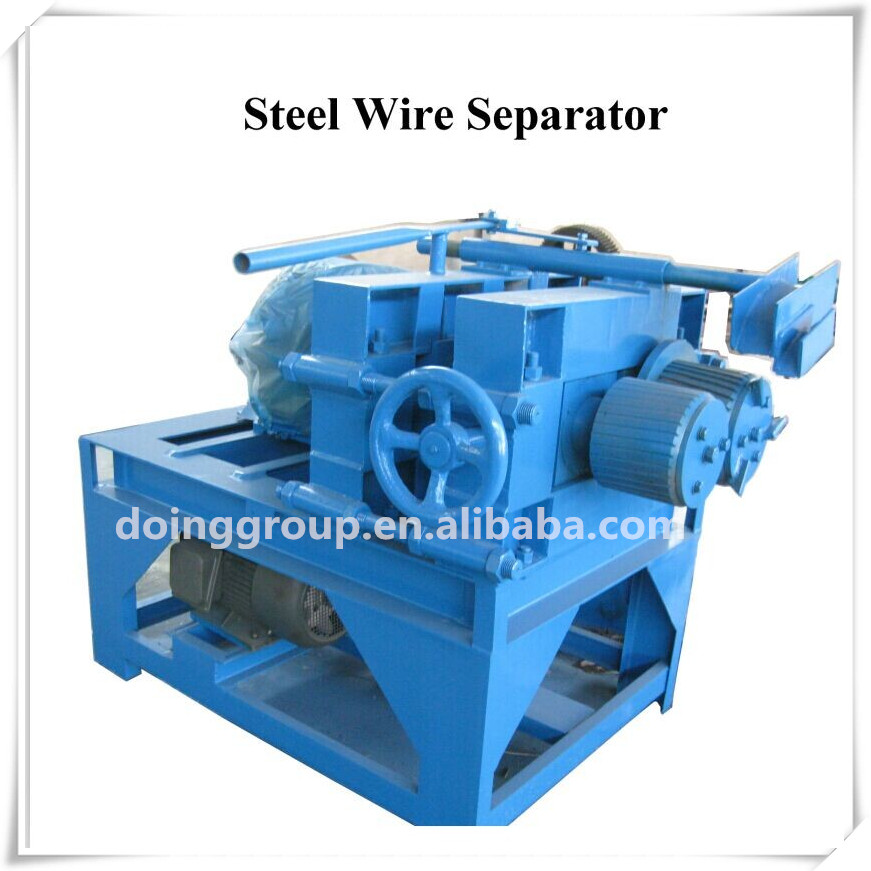

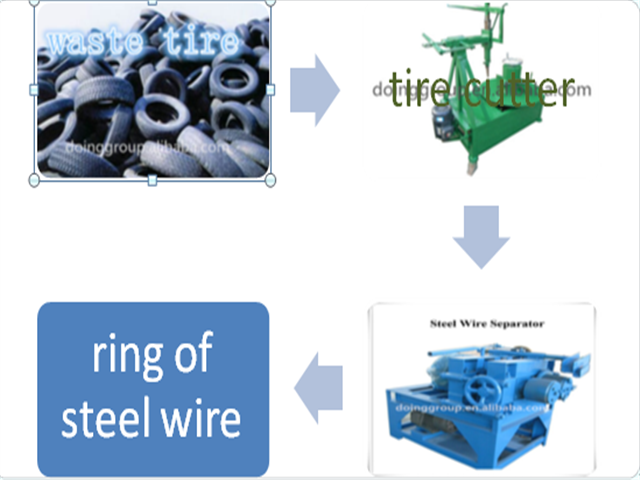

Steel separator
Application of steel separator
The waste tire steel wire separator use physical method to peel wire covering off from the bead under normal temperature, and finally get the bead ring which is still intact.
Technical parameters of steel separator
model | Size (mm) | Weight (kg) | Capacity (kg/h) | Power (kw) | Input size(mm) |
DYDS-1 | 1330*1080*1330 | 1200 | 1000 | 11 | 750-1200 |
Rubber grinding machine
Application of rubber grinding machine
As a part of rubber powder processing devices, rubber crushing machine breaks rubber strips from the tire crusher into 6-12mm rubber granules at normal temperature and separate the fiber.
Technical parameters of rubber grinding machine
Mode | Size（mm） | Output （kg/h） | Weight（T） | Power(KW) |
ZQTP-Z(50*50)B | 2350*2120*1425 | 1200-2500 | 2.5 | 11-15 |
Patent number: ZL 2010 2 0231821.3 201010204740.9 | ||||

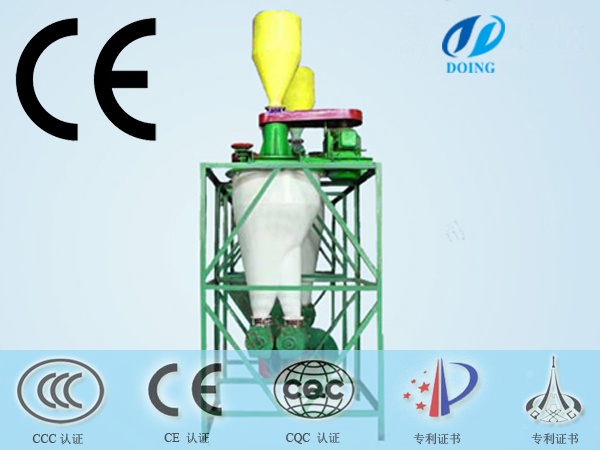

Fiber separator
Application of fiber separator
As a part of waste tire cutting machine, Fiber separator is used to separate nylon fiber from waste tire under normal temperature.
Technical parameter of fiber separator
Mode | Norm | Weight(kg) |
QQW-F40-ZY | 1560*1250*2920 | 2100 |
Capacity(kg/h) | Power(kw) | Input size |
800 | 15 | <4mm |
Patent: ZL 2010 2 0231956.6 ZL 2010 2 0321959.6 | ||

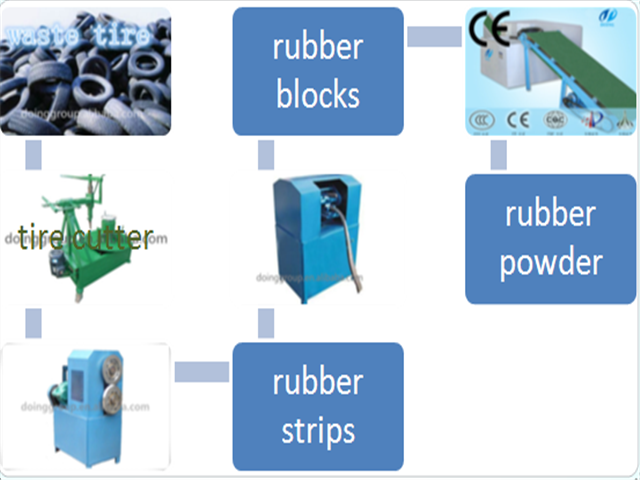

Flow chart of rubber powder line
Rubber powder line can make the waste tyre, or black pollution into the treasure. The rubber powder line can process the waste tyre into powder, whichn ca be used as the raw materials of rubber track, rubber soles and etc.
