Briquette Machine

Date:2015-08-18 14:47:44 / Briquette Machine

Briquette machine can be used to press coal powder, iron powder, coke, mineral powder, iron ore fines, metal dust, mill scale, iron oxide skin, carbon powder, slag, gypsum, tailings, sludge, kaolin clay, activated carbon, Coke breeze and other powder and waste material .The briquette machine is widely used in refractory, power plants, metallurgy, chemicals, energy, transportation, heating, etc. industries. The final products have features of environmental friendly, easy to transport, improving the waste recycling, and good economic and social benefits.



Working Principle of briquette machine This series of briquette machine will pass the power on to the two pressure roller through the reducer. The two sides and roll rotation, in both  rotating roll, Natural materials to enter the ball roll mode, with the roll rotation, material pressure on a small become larger, When the material to the two rollers rotating line contact point, the pressure of materials has reached the peak. Tremendous pressure in the role of line, the materials become a finished product from the powder ball.

Technical parameters of briquette machine

Model

ZQ400

Speed ratio

1:31.5

Roller size

430mm

Width

250mm

Roller leather materials

65mn quenching process

Surface hardness

56-58

Spindle speed

15-17RPM

Power

11kw

Capacity

3-5tons

Dimension

2460*1530*2030mm

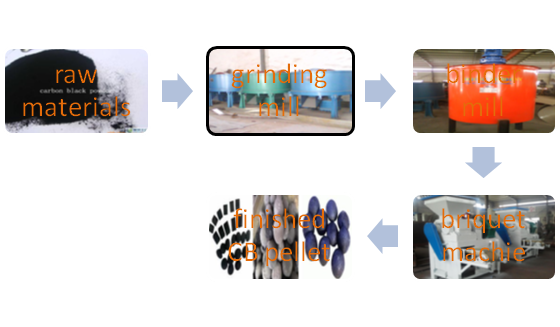

Flow chart of briquette machine:

Application for Briquette Machine:

1) Crusher is used for crushing raw material into smaller size (0-5mm)

2) Mixer is usde for mixing raw material and binder evenly

3) Briquetting machine is used for making coal briquettes

4) Dryer is used to dry coal briquettes

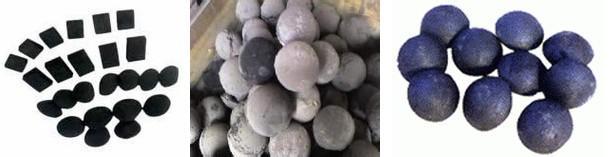

Features of coal briquette

1).High briquette ratio

2).Durable & good performance

3).Easy to maintenance

4).High briquette pressure
