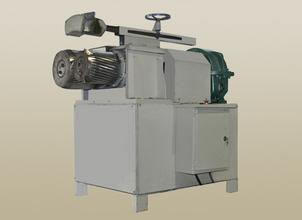

Tire steel wire separator

Date:2015-08-10 17:16:10 / Tire cutting machine


More details of tire steel wire separator

It is the ideal material that steel in the ring of the waste tire to make sand blasting, for steel has good elasticity and high hardness. As the tire steel wire and rubber is different to separate, the previous separation main use burn, speed of original processing method is slow, resulting steel wire annealing, loss of good elasticity, high hardness, the values of using declined sharply, also suffer great pollution to the environment, and the waste of burning rubber cannot be reused. The steel wire separator through a double grooved roll extrusion, and two groove roller different speed ratio make ring inner steel wire separated, it can keep the physical properties of the steel, rubber also can reused to avoid the environmental pollution. It’s best and professional equipment to deal with the month ring of waste steel tire.

Application of tire steel wire separator

The machine is used to separate the whole steel circles of bead wire from the rubber outside.

Working principles of tire steel wire separator

Putting the bead wire into the clearance of the two rollers, feeding it from the bottom, the whole steels and rubber outside can be separated by the two rollers working in different direction.

Technical parameter of tire steel wire separator

model

Size

(mm)

Weight

(kg)

Capacity

(kg/h)

Power

(kw)

Input size(mm)

DYDS-1

1330*1080*1330

1200

1000

11

750-1200

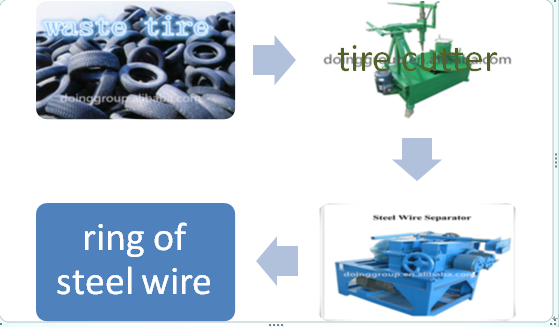

Flow chart of tire steel wire separator
