Cottonseed oil extraction plant

Cottonseed oil is extracted from cottonseed with Cottonseed Oil Extraction Palnt.Cottonseed oil extraction plant solves crude oil extraction from cottonseed cake through processing flows of solvent extracting, mixture oil filtration, wet bran treatment of dephenolizaiton and mechanical desolvent, and low temperature drying, evaporation, gas stripper to obtain crude cottonseed oil.After oil extraction , the wet meal with solvent is not processed but dephenolize directly, it reduces consumption, avoiding the thermal denaturation of protein and guarantee the quality stability of product.

Cottonseed oil extraction plant main parts includes:
(1)Solvent pumps: continuously spray solvent to the rotary-type extractor
(2)Roary extractor: Spray and soak the pre-pressed cake with solvent so that oil fats can be dissolved in solvent(form miscella). After processing, you can get wet meal and micella (mixed oil).
(3)DTDC: Used to separate the solvent from the wet meal.
(4)Miscellanous tank 1st: pump the miscella (oil with solvent) in to the miscella 1st , and then add 10% saline water to it.The phospholipid and impurities in the miscella will react with the saline water, at last the reactant precipitate, reaching the goal of purifying.
(5)Miscella tank 2nd:  the purified miscella will be pumped into it.
(6)Miscella stripping: it will remove the remaining solvent in miscella. And the solvent will be discharged to condenser for recycling.
(7)Condensers: used to cooling the solvent gas separated from the wet meal and miscella for recycling.

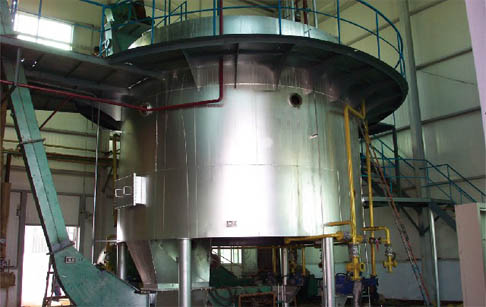

Cottonseed oil extraction machine:

cottonseed oil extraction machine
Cottonseed oil extraction plant

General process of cottonseed oil extraction process:



chart flow of cotton seed oil extraction

Chart flow of cottonseed oil extraction process

Cottonseed oil extraction plant process characteristics:
1. Adopting the negative pressure evaporation, oil quality is good;
2. The extraction system with a strong adaptation ability can adapt to the extraction process of different raw materials production;
3. Unique tail gas absorption system, absorption effect is good;
4. Perfect energy-saving design, to repeatedly use for thermal energy, save the steam consumption.


Cottonseed oil introduction:

Cottonseed oil makes large proportion of edible oil market.Cottonseed oil has many food applications. As a salad oil, it is used in mayonnaise, salad dressings, sauces, and marinades. As a cooking oil, it is used for frying in both commercial and home cooking.
