Solvent oil extraction plant

Cooking Oil Solvent Extraction Plant / Give me the price / Leave a message

Solvent oil extraction plant is a process to extract the oil from oil bearing materials by means of a solvent. A typical solvent used is hexane, a by-product of petroleum. The solvent oil extraction plant is designed to extract oil directly from oil seeds containing  less than  20% oil, like soybeans, after flaking. Or it extracts oils from pre-pressed or fully pressed cake of seeds containing more than 20% oil  like sunflowers,  peanuts, cotton seed, palm kernels, canola, copra, castor and a variety of other materials.
Solvent oil extraction plant workshops:

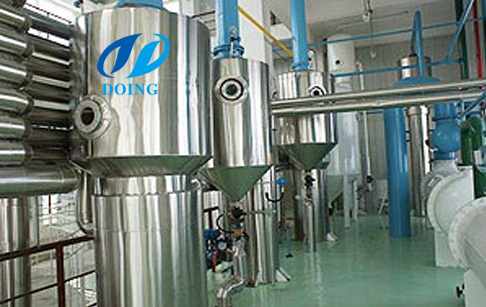

Vegetable oil solvent oil extraction plant

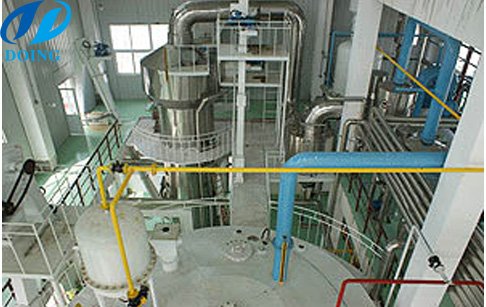

Vegetable oil solvent oil extraction plant

The purpose of solvent oil extraction plant is to remove most of the oil contained in the seed. Extraction is conducted on prepared seeds or, as generally occurs in the case of high oil content seeds, the cake obtained from pre-pressing. Solvent oil extraction plant consists of a sequence of five operations:

  1.Preparation of seeds for extraction which includes pre-pressing for high oil content seeds.

  2.Extraction of oil from the prepared material with the aid of a food-grade solvent.

  3.Desolventising-toasting of the de-oiled seed/meal, often combined with drying and cooling of the said meal.

  4.Distillation, to remove the solvent from the extracted oil.

  5.Recovery of solvent, which is reused again and again at the extractor level.

Solvent oil extraction plant

Solvent oil extraction plant technology:

1. Simple in structure with stable performance;

2. Additional horizontal grid plate prevents the miscella from flowing back into the material cell to ensure the best extraction effect;

3. The wet meal is discharged by the material discharger which continuously discharges the wet meal onto the wet meal conveyor.  This avoids meal bridging, un-uniform wet meal discharging and extends the serviceable life of the wet meal conveyor.

4. Composed of pre-extraction, extraction and draining sections. There is material turnover in the process of extraction to make the  extraction uniform and thorough. Special self-cell solvent spraying ensures the best effect during extraction.

Features of the solvent oil extraction process:

1. Evaporation takes place in a vacuum for the best oil quality.

2. Extraction system can process different raw materials.

3. Developed by BMC, solvent recovery system from vent gas is particularly absorbent.

4. With full energy conservation and repeat utilization, steam consumption is markedly reduced.

Solvent oil extraction plants supplied by Doing Mechanical Equipment Co,.Ltd

In order to meet different clients' requirements, we have a wide range of equipment with capacities from 300 kg to 100 metric tons. When refined, oil grades may qualify as Grade 1, Grade 2, Grade 3 or Grade 4. There are two technologies: one is batch, the other is continuous. Normally we adopt batch-type processing for capacities less than 20 t/d. Otherwise the process adopted is semi-continuous or  continuous.
