The functions of flaking machine used in oil seeds processing plant

Cooking oil machine FAQ / Give me the price / Leave a message

The flaking machine used in oil seeds processing plant is designed to turn the oil materials into flakiness, by means of mechanical extruding force. Flaking process is essential in cooking oil production line, since oil seeds flaking machine can effectively improve the oil yield of oil mill machinery through increasing material superficial area.

This newly developed oil seeds flaking machine is featured of compact structure, easy operation, reliable and safe working performance. Since the design is based on different oilseed properties, this oil seeds flaking machine can process different oilseeds including soybeans.

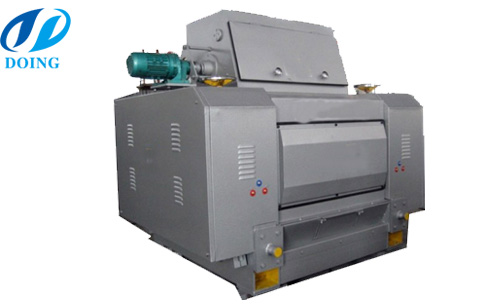

flaking machine  Flaking machine used in oil seeds processing plant

What is the function of flaking machine in oil seeds processing plant?

1. Destroying the oil cells to make the oil fat to release by mechanical power.

2. Forming the thin flakes, to make the oil surface increase more during cooking, which is good for oil yield during pressing and slovent extraction process.

In a word, oil seeds flaking machine is good for improving oil yield. The flakes should be very thin and uniform, the podwer should be less and without leaking oil.

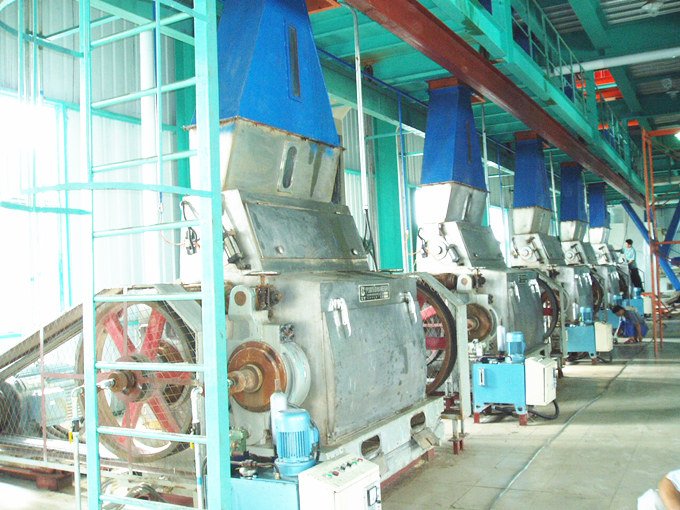

Oil seeds flaking machine

What are the types of oil seeds flaking machine?

There are two types of oil seeds flaking machine, one is vertifical type, the other is side-by-side type.

The vertifical type flak roll is high efficient , the rolling effectiveness is good , the oil seeds need to bear bigger and bigger pressure from top to bottom. It is suitable for processing the oil seeds which is small size with shells or tough skin, for example, rapeseed. Its disadvantage is that the space between rolls and pressure can not be adjusted, complicated structure is not easy to maintain, the handling capacity is limited.

The side-by-side flaking machine flak roll is also called horizontal flak roll, it includes two types, they are single roller flak and double roller flak. The former is suitable for processing small scale, it is also have the function of crushing. The latter one is big pressure and adjustable, by this flak roll machine, the final users can get thin and even flaks. So it is adopted widely.

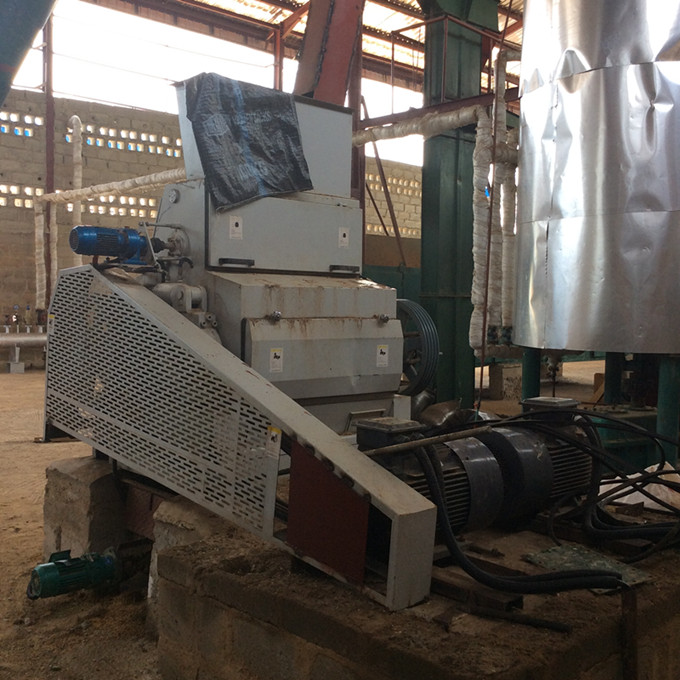

oil seeds flaking machine Oil seeds flaking machine we have installed in Nigeria

We are the manufacturer of the cooking oil production line, the oil seeds flaking machine is only one part of this line, we ususlly adopt the double roller flak.

Generally, oil seeds flaking machine is needed for oil seeds pretreatment before oil seeds solvent extraction, which help thin oil seeds and enlarge the oil surface in solvent extraction. Usually, in soybean oil processing, rice bran oil processing, etc, oil seeds flaking machine is an essential part.

However, different oil seeds have different processing methods and we can help you design specialized processing line according to your material, if you want to know more about vegetable oil processing plant. Please feel free to contact us, we will give you a professional suggestions!
