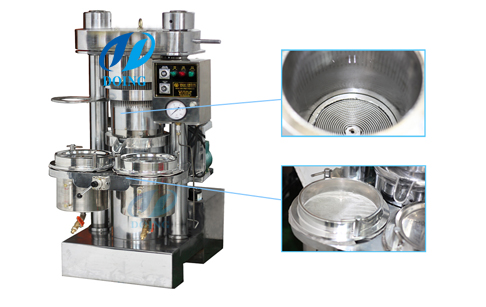

Hydraulic press machine
Characteristics and application of hydraulic press machine:
1, pressing chamber pressure size range, good adjustable (0.1-150MPa);
2, can adapt to the process of various oil and various oil preparation, including cold pressing, hot pressing, high water slurry residue for oil and high oil content oilseed grinding pressure oil;
3,long production period, loading, unloading cake trouble, stand-alone production efficiency is low, equipment and large occupation area;
4, static squeezing out oil efficiency is low, the operation requirements "edge planing reconditioning, workshop insulation (35℃)," poor labor conditions.
Therefore, this kind of hydraulic press machine oil equipment in general can only be used in some scattered oil (like rice bran) and the need to maintain the special flavour or nutritional (like cocoa beans, sesame) pulping hydraulic oil.

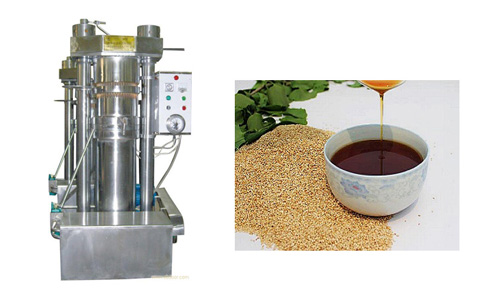

Hydraulic oil press machine
Technology date of hydraulic oil press machine:
| DY- A Type | DY- B Type | |
| Processing capacity | up to 35 kg/h | up to 35 kg/h |
| Residual oil content press cake | 6,5 - 10 % | 6,5 - 10 % |
| Oil temperature at outlet | 35 - 40 °C | 35 - 40 °C |
| Cake temperature at outlet | 40 - 50 °C | 40 - 50 °C |
| Dimensions(LxWxH) | 700 x 850 x 1400 mm | 700 x 800 x 1400 mm |
| Weight | 820 kg | 785 kg |
| Motor rating | 2.0 kW | 1.8 kW |
| Power supply | 3 Phase, 50,60 Hz, 380,415 V | 3 Phase, 50,60 Hz,380,415 V |
| Single batch capacity | Up to 7kg | Up to 7kg |
