What is the functions of softening pot in soybean oil making process?

Cooking oil machine FAQ / Give me the price / Leave a message

Soybean softening pot is featured with softening effect and less power consumption. Horizontal soybean softening pot is suitable for the pressing oil mill plant and extraction oil mill plant whose capacity is 50-1000T per day.

The roller turning the materilas evenly, avoid scroching by materials running dead corner. Oil materials get into the softening pot from the letting in end, due to the barrel slope and inside screw plate force, running to the other end, discharge, oi materials in the roller heated and softened by the heating pipe.

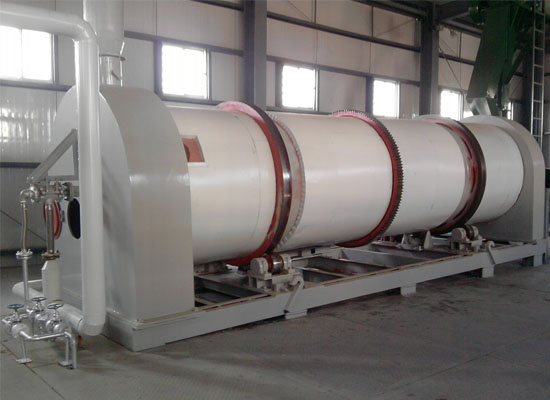

Soybean softening pot

Performance feature of soybean softening pot:

Sufficient heat exchange, low heat consumption, high efficiency and energy saving wide range of raw material, large capacity, great water evaporation, and can dry high moisture material.

• driven by variable frequency motor, electric consumption saves more than 30% than traditional tube bundle dryer.

• Additional equipment for this dryer is few, with small footprint, compact layout, which could be installed in one-storied factory, saves a lot construction cost.

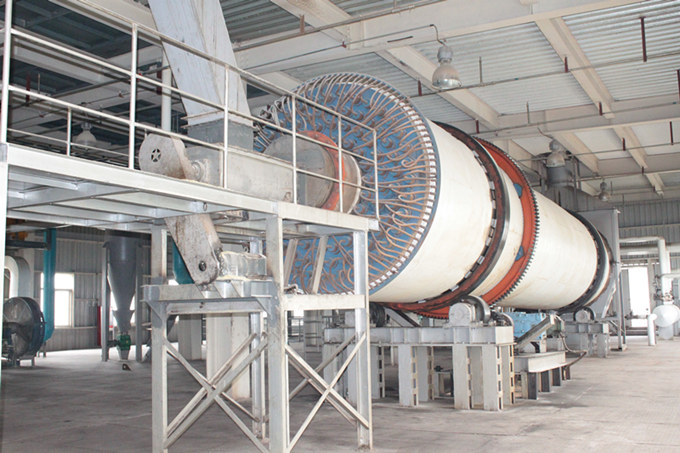

Soybean softening pot

 Besides this, compared with traditional tube bundle dryer, it has those features:

• raw material mixed completely in the drum, no residue material.

• because the heat exchange tube do not suffer torque which reduces the risk of heat exchange tube cracking and leaking, enhance the using life of the equipment. If gas leaking happens, it is very easy to change the tube.

•  roller drum body thickness 12-18mm, the common tube shell usually is 6mm, at the same corrosion, the body life could be twofold long.

• allow start with material.

•  high automatic and batch operation is ok too.

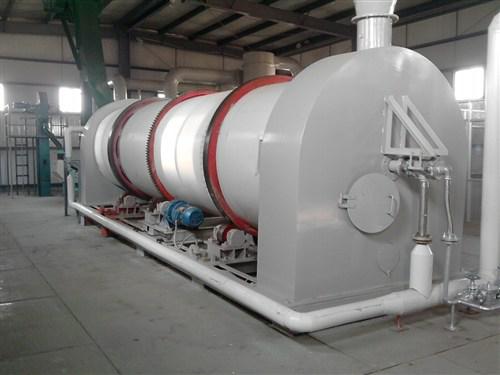

Soybean softening pot

Technical parameters of soybean softening pot：

Model	Rotate speed r/min	Main motor power KW	Heat exchange surface (m2)	Drying capacity (KgH2o/m2.h)	Dimension
GGZ100	5-8	7.5	100	4.7	9100×1912×2470
GGZ200	5-8	11	200	4.7	10000×2212×2810
GGZ300	5-8	22	300	4.7	10784×2488×3383
GGZ400	5-8	30	400	4.7	13048×2488×3383
GGZ500	5-8	45	500	4.7	12298×2982×3965
GGZ600	5-8	75	600	4.7	12298×2982×4165
GGZ700	5-8	75	700	4.7	13298×2982×4365

Soybean softening pot technical parameters (1)

Material	Corn germ	Corn protein powder(gluten)	Corn fiber	Corn mixed feed	Tuber corps fiber	stillage	Feed carrier	rapeseed (not used as seed)	Fermentation feed
Feed material moisture%	55	62	60	55	65	65	16	60	40
Output material moisture%	3-5	10-12	10-12	10-12	10-12	10-12	6-8	5-7	10
Suggest drying intensity kgH2O/m2·h	2.5-3	4.7	4.8	4.8	4.8	4.9	4.2	4.5	4.5

Soybean softening pot technical parameters (2)
