How does copper wire granulator recycling works?

Date:2015-09-14 10:04:46 / Pyrolysis machine FAQ


Copper  granulator machine

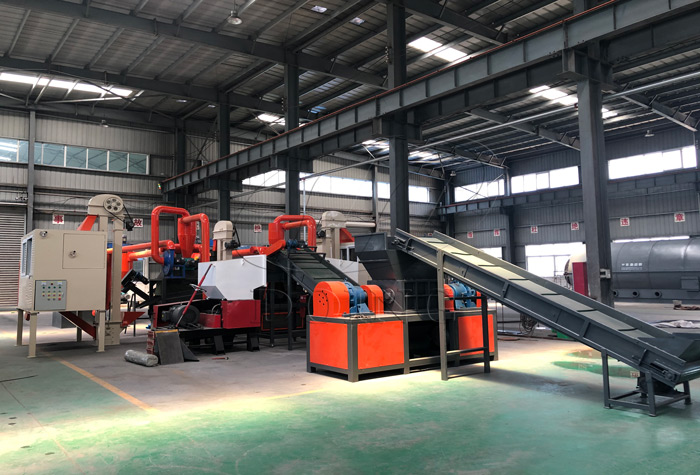

Copper wire granulator recycling machine


Doing copper wire granulator recycling machine is mainly used to make the double recycling use of metals and plastics from scrap cables, wires and PCB boards.

How does copper wire granulator recycling machine works?

copper granulator machine

Copper wire granulator recycling machine working process

copper wire machine

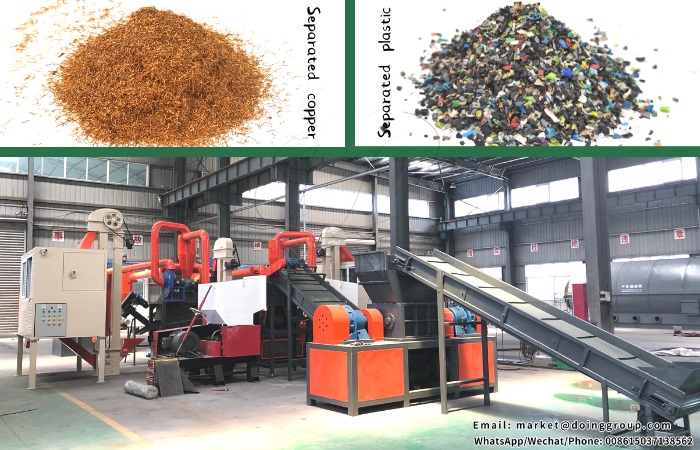

Copper wire granulator recycling machine final product

1. Starting
Please make sure all the machines and electrical equipments are in good condition. Then start the machine, and keep the machine running unloaded for 5-10 minutes before feeding.
Attention:
Boot sequence: suction fan1→suction fan 2→blower-feeding blower →riddler→mainframe.
Shutdown sequence: Riddler→blower→suction fan1→suction fan 2→feeding blower→mainframe
2. Feeding
Before feeding, pick up the debris especially the iron from the wires in case of the damage to the crusher blades. During the feeding period, the feeding speed should be in accordance with the crushing speed.
3. Fine crushing
If there is any abnormal noise, please stop and check the crusher, or change different size screen.
If there is too much copper or the produced particles are relatively small during the production process, replace the screen and adjust the distance between the fixed knife and the moving one.
If the machine is easy to overheat, stop the device and inspect the gearing.

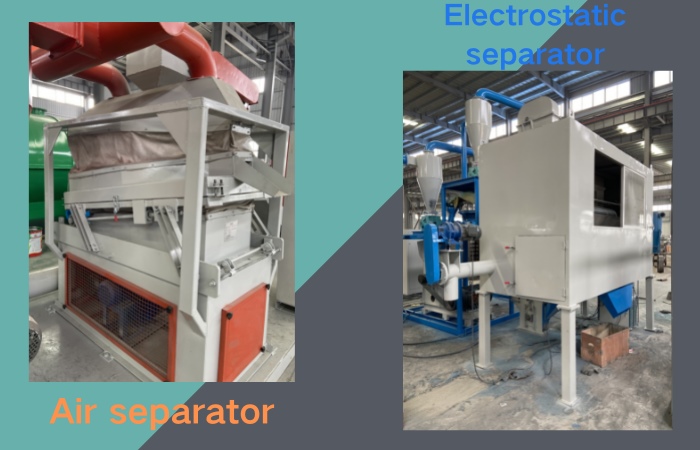

4.Vibrating separator
After crushed, the mixed material will be delivered to vibrating device. The copper from vibrating separator is complete copper without plastic, while the copper clad from the opposite discharging hole needs the second crushing.
