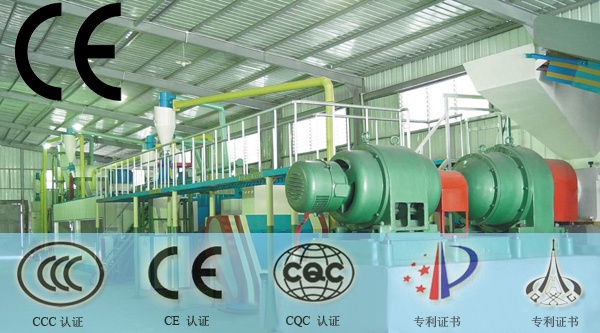

Rubber powder production line

Rubber powder production line

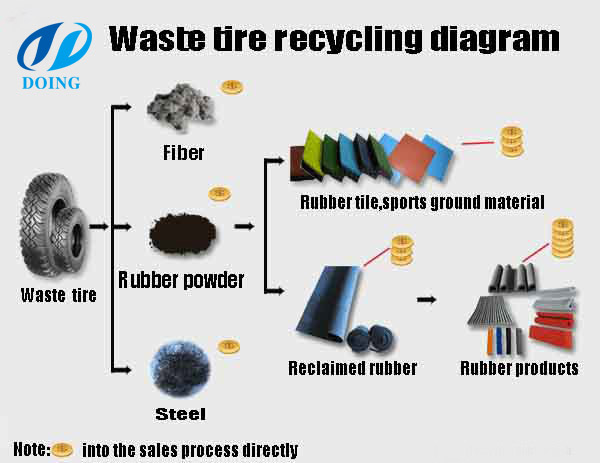

From waste tire to rubber powder, theprocess is a little complex. During the process, the following machines are essential.Our machines are complete in specification as well as quality and quantityassured. According to your request, we can provide you different capacity ofrubber powder devices.

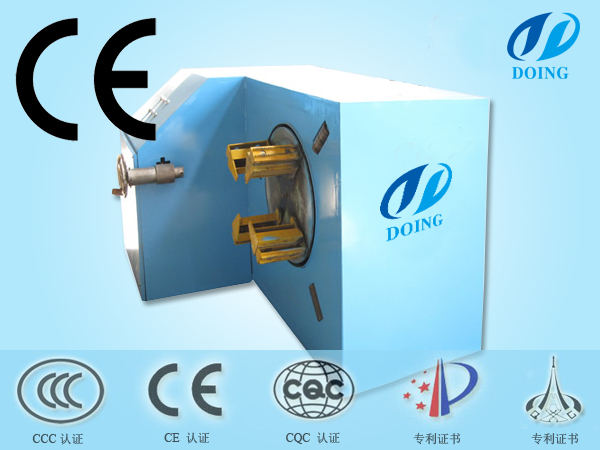

Tire bead cutting machine

Technicalparameters:

Mode

Sizemm

Outputkg/h

WeightT

Power (KW)

ZQTQ-F1200-B

1480*1460*1200

1200-1600

1.8

2.2

Patent number: ZL 2008 2  0069170.5          ZL 2008 2 0059687.5

Function:

1. Lowconsumption, light in weight, occupying a small area are also the traits of themachine.

2. The tire iseasy to be installed, with a short reciprocating stroke, and the machine isproductive.

3. The feedingcutter is made of excellent high rigidity wearing proof alloy steel, theservice life of the machine is long, and the tool grinding can be repaired byresurfacing welding repeatedly.

Features:

1. Operators andmachine are separated when working, easy and safe operation.

2. Highefficiency, less labor.

3. Low energy consumption,which can save more cost.

4. Quality assurancecan satisfy continuous production.

5.Cutters are made of high-quality strength wear-resistance alloy, long servicelife.

6. Lower cost maintenance.Machine is widely used and can be matched with all kinds of waste tirerecycling line.

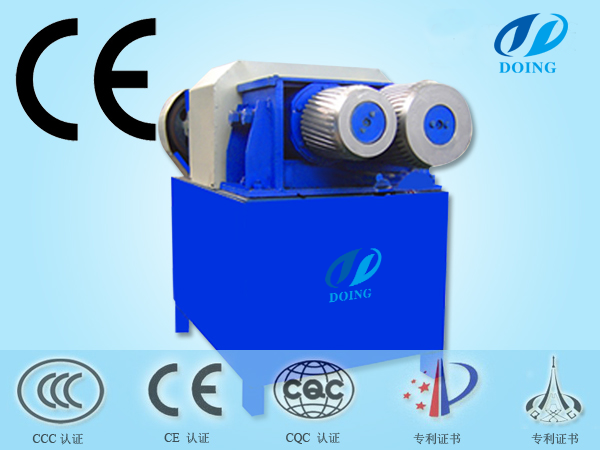

Tire steel wire separator


TechnicalParameters

Mode

Sizemm

Output

WeightT

Power(KW)

ZQTC-F-ZY

1330*1080*1330

40-60

1.2

11

Patent  number: ZL 2008 2 0068171.X    ZL 2008  2 0169172.6

Function

As a part ofrubber powder processing devices, Use physical method to peel the heavy steelwire from the tire sidewall under normal temperature, remain integrity of thesteel.

Features:

1、Operators and machine are separated when working, easyand safe operation.

2、High efficiency, less labor.

3、Low energy consumption, which can save more cost.

4、Quality assurance, can satisfy continuous production.

5、Steel can be drawn completely, high restore value.

6、Key parts are made of high-quality strengthwear-resistance alloy, long service life.

Tire Crusher


Technical parameters:

Mode

Sizemm

Output kg/h

WeightT

Power(KW)

ZQTP-Z(50*50)B

2350*2120*1425

1200-2500

2.5

11-15

Patent  number: ZL 2010 2 0231821.3       201010204740.9

Function

As a part ofrubber powder processing devices, rubber crushing machine breaks rubber stripsfrom the tire crusher into 6-12mm rubber granules at normal temperature andseparate the fiber.

Features:

1. Operators andmachine are separated when working, easy and safe operation.

2. Highefficiency, less labor.

3. Low energy consumption,which can save more cost.

4. Quality assurancecan satisfy continuous production.

5. Output size canbe adjusted accordingly, meet customer’s different request.

6. Cutters aremade of high-quality strength wear-resistance alloy, long service life, can berepaired many times.

7. Output size areuniformed, which is convenient for the next working process, can match oilrefinery machine, advance oil extraction rate.

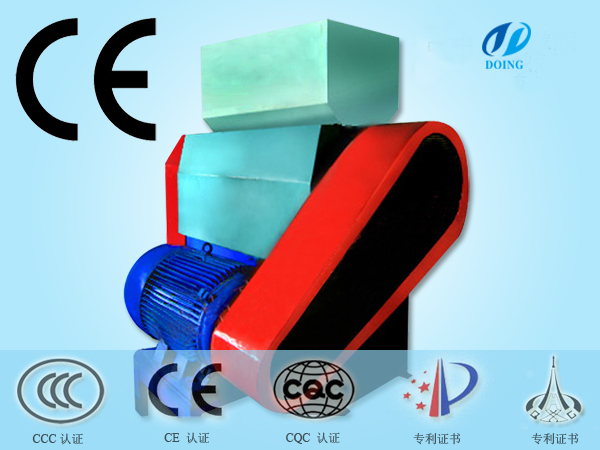

Rubber Secondary Crusher


TechnicalParameters:

Mode

Norm

Weight(kg)

Weight(kg)

ZFCZ-F256-C

2220*1620*2280

4.8

800-1200

Power(kw)

Input size(mm)

Output size(mm)

75

50*50

6-12

Patent  number: ZL2008 2 0084171.7     ZL2008 2  0289652.6

Function:

As a part of rubber powder devices, rubbercrushing machine that breaks the rubber strips from the tire crusher into6-12mmrubber granules at normal temperature, and separate the fiber.

Features:

1.Particular structural design can absorb the noise anddust generated during production.

2.Exclusive water cooling system to assure the machinerunning in high speed under normal temperature.

3.Particular cutter structure, in order to cutreasonable, reduces power consumption, length use period.

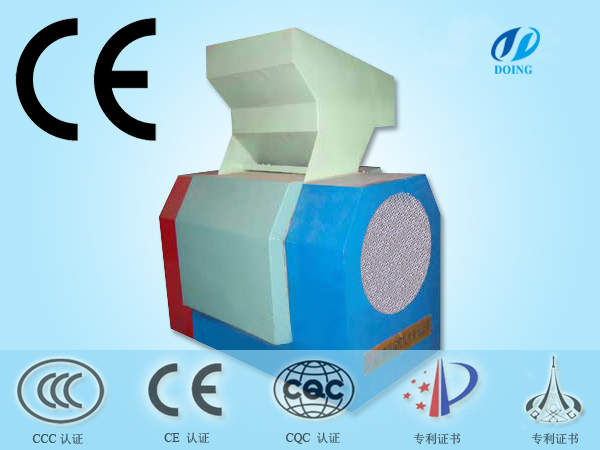

Rubber Fine Crusher

Technicalparameters:

Mode

Norm

Weight(kg)

Weight(kg)

ZFCx-F229-ZY-C

2950*2220*3120

4.8

800-1200

Power(kw)

Input size(mm)

Output size(mm)

45-75

6-12

1-3

Patent number: ZL 2010. 2 0231967.5    ZL 2010.2 0132987.4

Function:

As a part of rubber powder processingdevices, Crush the 6-12mm rubber granules to 1-3mm rubber granules at normaltemperature, and separate the fiber from the rubber granules.

Features:

1.Double layer interstitial texture feeding hopper, canabsorb the noise and dust generated during production.

2. Exclusive water cooling system, canavoid the rubber become sticky and burned in high speed.

3. It adopts a particular cutter structure,in order to cut reasonable, reduce power consumption, length use period.

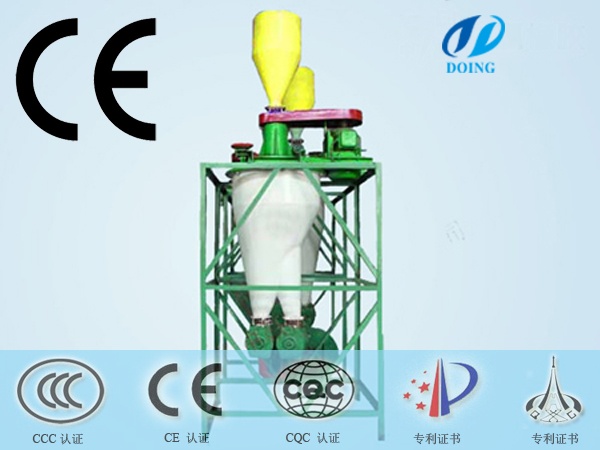

Fiber Separator


Technicalparameters:

Mode

Norm

Weight(kg)

QQW-F40-ZY

1560*1250*2920

2100

Capacity(kg/h)

Power(kw)

Input size

800

15

<4mm

Patent: ZL 2010 2 0231956.6     ZL 2010 2 0321959.6

Function

As a part ofrubber powder processing devices, Fiber separator is used to separate nylonfiber from waste tire under normal temperature.

Features

1. High separateefficiency, wide application scope.

2. Particularautomatic recycle airflow design can adjust the specific gravity of theseparated materials automatically.

3.Long service life, convenient installation andmaintenance.

Fine Powder Milling Machine

TechnicalParameters:

ZQCF-F400-ZY-C

1250*700*1210

1024

80-150

Power(kw)

Input size(mm)

Output size(mm)

15

1-3

0.75-0.075

Patent  number: ZL 2008 2 0069171.X   ZL 2008 2  0047961.6

Function

As a part of rubber powder processing devices,Mill the 1-3mm rubber granules to 0.075mm-0.75 mm (30-200mesh)fine rubber powder.

Features:
1. Low power, high output ,low noise , small vibration.

2. It takes special design, grinding disk is easy to dismantle and install,with long life span.

3.It adopts specialstructure of cooling water system, can avoid the rubber become sticky andburned in high speed running.

4.It adopts theautomatic control method to adjust the gap between millstone, according todifferent requirements.

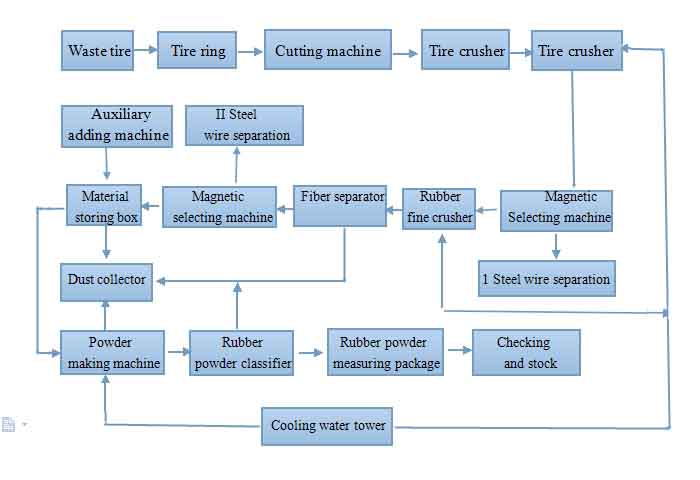

Flow chart of rubber powder production line:
