Waste tyre to fuel oil pyrolysis plant

Waste tyre to fuel oil pyrolysis plant

Waste tyre to fuel oil pyrolysis plant

Waste tyre to fuel oil pyrolysis plant adopt high technology, with many years experience and continuous research and improvement, we are the leading industry of this field in China. adopt high technology, with many years experience and continuous research and improvement, we are the leading industry of this field in China.The waste tyre to fuel oil pyrolysis plant can pyrolysis waste tyre to fuel oil ,carbon black and steel wire.

Detailed product description of Waste tyre to fuel oil pyrolysis plant

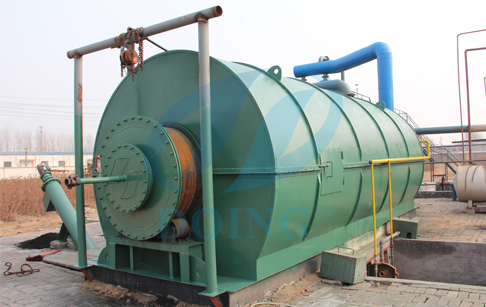

tyre pyrolysis plant

Tyre to fuel oil pyrolysis plant

1)48%--52% High oil yield
2)Pollution-free
3)Advanced cooling system
4)Good after-sales service
5)Certification: ISO,SGS,CE

Working process of Waste tyre to fuel oil pyrolysis plant

tyre to oil plant

Waste tyre to fuel oil pyrolysis plant pyrolysis waste tyre to fuel oil and carbon black

Auto-feeder load the whole waste tires into reactor, seal the reactor and heat the reactor by burning the fuel(coal,wood,natural gas,oil) in the combustion system. there is a thermocouple installed the oil gas outlet to test the oil gas temperature,when thermocouple show certain temperature, the oil gas will come out, then go through the cooling system to become to oil. At same time,there are some gas(CH4,C2H6,C3H8,C4H10 and H2) can not be cooled under normal pressure,they will be recycled back to combustion system to burn as energy.the dust and sulfur gas will be removed by the dust removing system.after the oil gas run out, there are slag(carbon black) inside of the reactor, DOING GROUP Company use the automatic discharging system to remove it. Then DOING use auto-feeder to remove the tire wire steel. usually the 10 tons capacity need about 16 hours to finish the whole process.

Final product of Waste tyre to fuel oil pyrolysis plant

tyre pyrolysis plant

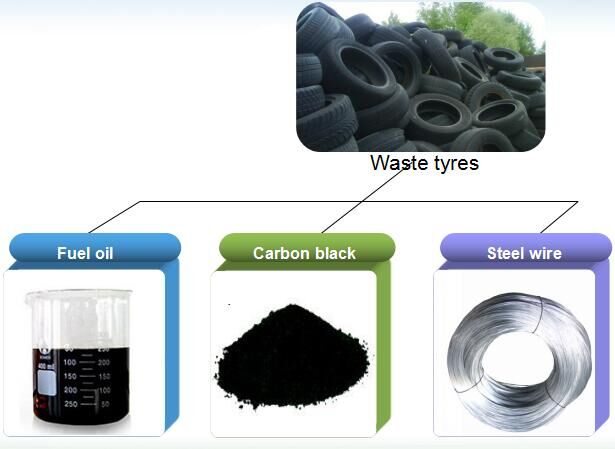

Waste tyre to fuel oil pyrolysis plant final product


Tyre crude oil 48%-52%, 30% Carbon black, 15% Tire wire steel and the rest is the waste gas.

Product application of Waste tyre to fuel oil pyrolysis plant

1. Tyre crude oil usage(where need the oil as fuel)


tyre to fuel oil

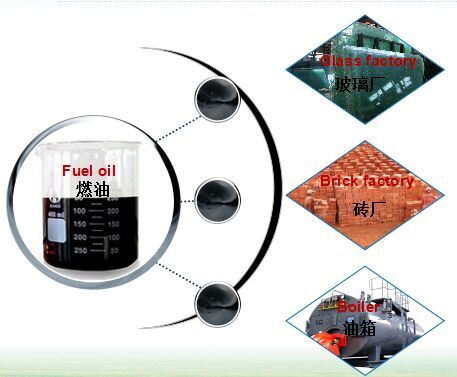

Tyre fuel oil application

A.power plant factory
B.glass factory
C.cement factory
D.ceramic factory
E.aluminum factory
F.boiler factory
G.central heating factory
H.painting factory

2. Carbon black usage

tyre pyrolysis plant

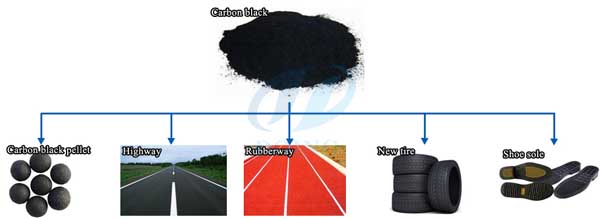

Carbon black application

As the waste tire carbon black there are ash inside so this quality is not so good. Until now our technology can use some ways to make the carbon black to briquette, which can be sold as the industry coal.

3. Tire wire steel usage

This can be sold to the steel making factory.

4. The waste gas(CH4,C2H6,C3H8,C4H10 and H2)

As these gas can not be cooled under the normal pressure,besides they are all combustible gas, which is dangerous to storage. after it produce we let the gas back to the combustion system to burn as energy. This will safe and save your fuel cost.

Technical parameter of Waste tyre to fuel oil pyrolysis plant

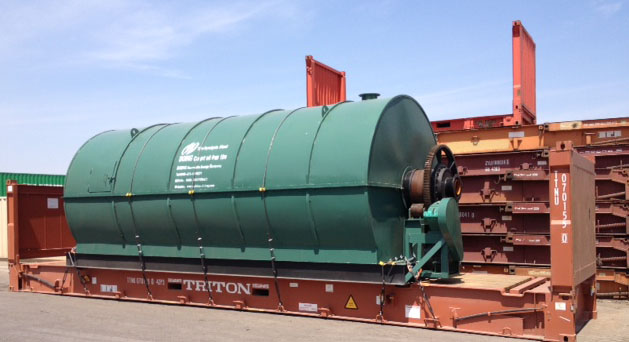

pyrolysis plant

Waste tyre to fuel oil pyrolysis plant


Technical parameter of Waste tyre to fuel oil pyrolysis plant
 ItemsContents
1Equipment typeDY-1-6DY-1-8DY-1-10
2Raw materialWaste tyreWaste tyreWaste tyre
3Structural formHorizontal  rotationHorizontal  rotationHorizontal  rotation
424-hour  Capacity6 ton8 ton10 ton
5Oil yield2.7-3.3ton3.6 -4.4ton4.5 -5.5ton
6Operating  pressureNormalNormalNormal
7Material of  ReactorQ245RQ245RQ245R
8Thickness of  Reactor16mm16mm16mm
9Rotate speed0.4turn/minute0.4turn/minute0.4turn/minute
10Total power19KW19KW19KW
11Mode of coolingWater coolingWater coolingWater cooling
12Cooling  area 100sqm100sqm100sqm
13Kind of  transmissionInternal gear  driveInternal gear  driveInternal gear  drive
14Noise dB(A)858585
15Size of  Reactor(D×L)2200×60002200×66002600×6600
16Working formIntermittent  operationIntermittent  operationIntermittent  operation
17Delivery time20days20days20days
18Weight27T30T35T
