Tire recycling machine

Date:2013-06-20 09:03:57 / Pyrolysis Plant

pyrolysis plant

Tire recycling machine

DOING tire recycling machine,  with the superiority of low capital investment and high fuel financial price, has become the first preferred waste disposal method in many countries. This profitable project was established in many countries with low labor costs and less environmental restriction worldwide. DOING GROUP from Henan , China installed more than one thousand highly sophisticated and advanted waste tire recycling machine, which are widely appreciated by customers owing to the various advantages and profits.

tire recycling

Tire recycling machine

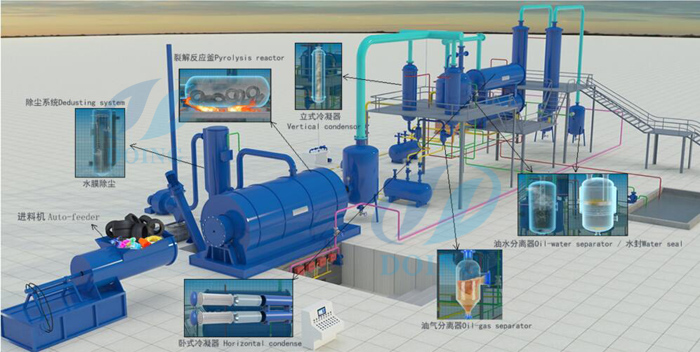

Waste tire recycling machine pyrolysis process:

tire recycling machine

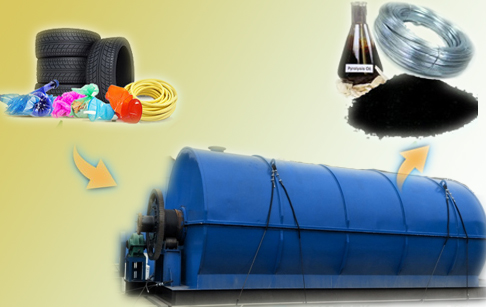

Tire recycling machine process tire to fuel oil

a. Use auto-feeder to feed the waste tires into reactor automatically, seal the feeding inlet door tightly.
b. Heat the reactor by burning the following fuel material: coal, wood, natural gas, or fuel oil in the combustion system. The reactor will be heated slowly, when the temperature reaches around 250 degree Celsius, the oil gas will be formed.
c. After processed by doing waste tire recycling pyrolysis machine, the oil gas will go to the cooling system to be liquefied. The gas which can not be liquefied under normal pressure will be designed to go back to combustion system through safety device instead of the fuel material to burn the reactor, which isenvironmental friendly and can save you much energy.
d. After finishing oil collecting, the temperature of reactor will be down, while, carbon black can be discharged automatically at the same time.
e. when the temperature falls down to 100 degree Celsius, workers can open the door of reactor to discharge the steel wire.
f. Start another batch working.

Technical parameter of tire recycling machine
1Equipment typeDY-1-6DY-1-8DY-1-10
2Raw materialWaste tireWaste tireWaste tire
3Structural formHorizontal  rotationHorizontal  rotationHorizontal  rotation
424-hour  Capacity6 ton8 ton10 ton
5Oil yield2.7-3.3ton3.6 -4.4ton4.5 -5.5ton
6Operating  pressureNormalNormalNormal
7Material of  ReactorQ245RQ245RQ245R
8Thickness of  Reactor16mm16mm16mm
9Rotate speed0.4turn/minute0.4turn/minute0.4turn/minute
10Total power19KW19KW19KW
11Mode of coolingWater coolingWater coolingWater cooling
12Cooling  area 100sqm100sqm100sqm
13Kind of  transmissionInternal gear  driveInternal gear  driveInternal gear  drive
14Noise dB(A)≤85≤85≤85
15Size of  Reactor(D×L)2200×60002200×66002600×6600
16Working formIntermittent  operationIntermittent  operationIntermittent  operation
17Delivery time20days20days20days

If you wanna to get more details about Tire recycling machine you can send E-mail to You can consult our professional engineer and specialized sales team with leave a message in below form.We will contact with you ASAP.You also can visit our factory in Henan,China.Get Detailed address.
