DY-1-5 tyre pyrolysis plant

DY-1-5 tyre pyrolysis plant

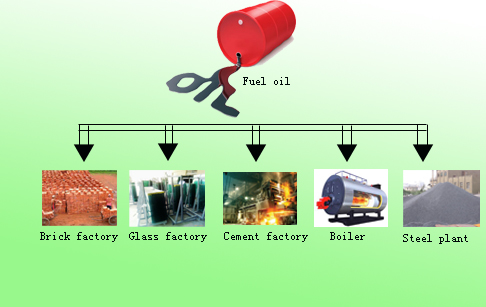

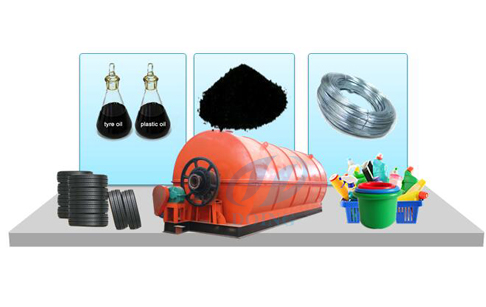

Overview of DY-1-5 tyre pyrolysis plantDY-1-5 tyre pyrolysis plant is composed by 13 parts, which are reactor, transmission device, catalytic chamber, cooling tube, heavy oil tank, oil-water separator, condenser, light oil tank, safety device, vacuum system, dedusting system, draft fan, chimney.

The two keys of DY-1-5 tyre pyrolysis plant are reactor and cooling system.

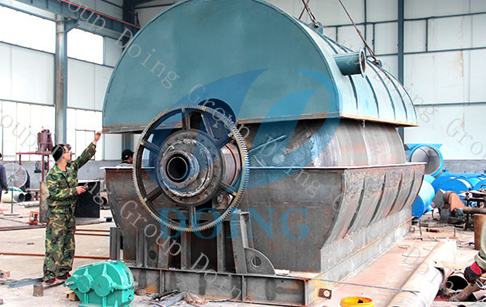

Reactor directly decides the machine’’s safety and service life. It is made by welded steel plate. So the quality of welding will have a direct impact on safety and service life. Therefore, we use automatic welding machine, X rays detection and heating treatment which will not only guarantee the quality of welding but also greatly improve working efficiency.

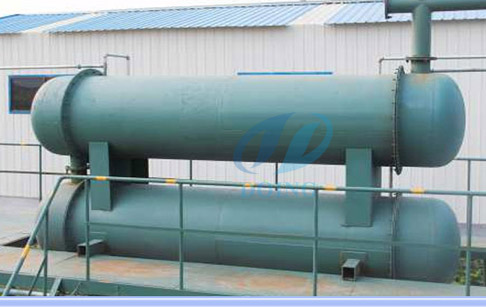

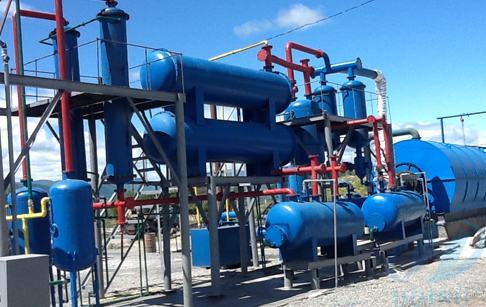

For cooling systems, there are two steps. Cooling pipe is the first step. The second is condenser. We have three condensers. And there are 57 pipes in one condenser. Diameter is 48mm for one small pipe. The heat exchanging area is about 13square meters for one condenser. So the total cooling area is about 40 square meters, which will guarantee you a high oil yield.

Materials and system advantages

Reactor
Using 245R、boiler plate 、the thickness is 16mm, welding for three time at the junction and reinforcing. Guarantee the quality and bigger bearing capacity.

Oil and water separator system
This is a safety device.
First,it can separate the oil and water,cause all we know oil is lighter than water.
Second.it can avoid the tail gas come back to the reactor.If the gas come back to the reactor,it will be very dangerous,it’s the reason of explosion.
When the tail gas come back to the reactor,when you discharge the carbon,the oxygen also will come into,if the temperature is also very high,OK,the accident happened.
But if there is a separator,the tail gas will never come back to the reactor.

Vacuum System
A safe deivce,principle is very simple,
Use the moter and water pump
Keep the water rotating at a high speed,
Keep there is a vacuum,
Then can suck all the gas from reactor,before 100 degree,
Can suck all the steam,there will be no water in the oil.
And also if all the gas is sucked to the back,inside the reactor pressure will be negative,more safe.
Also the pyrolysis tempreture will be lower,can save energy.

Place of Origin

Henan, China (Mainland)

Brand Name

DOING

Model Number

DY-1-5

type

tyre pyrolysis plant

land require

200 sqm

weight

25 tons

length

5500mm

colour

according to customer’s request

modal

5 tons

diameter

2200mm

one batch time

16 hours

welder

aoto-welding

Price:

FOB USD 35000.00~70000.00 / Set

Minimum Order Quantity:

1 Set/Sets

Port:

Qingdao/Tianjin

Packaging Details:

according to customer’s request

Delivery Time:

20 days after deposit

Payment Terms:

T/T, Western Union

Supply Ability:

10 Set/Sets per Month

Prev Λ Doing tire recycling plant DY-1-6
NEXT ν Waste tires to oil machine
