Date:2013-06-19 22:00:21 / Pyrolysis Plant

used tire recycling

Used tire recycling plant

Used tire recycling plant adopt high technology, with many years experience and continuous research and improvement, we are the leading industry of this field in China.  I would like to introduce you the used tire recycling plant from DOING group company.

Used tire recycling plant working process:

used tire recycling plant

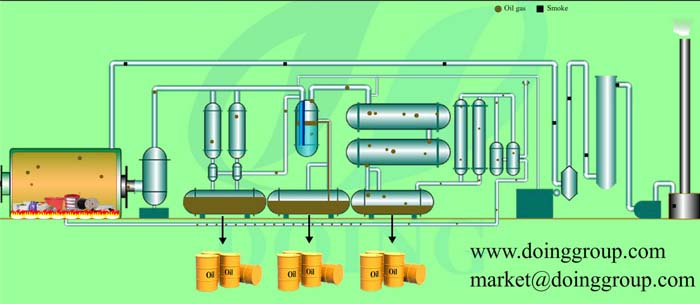

Used tire recycling plant recycling used tire to fuel oil and carbon black

First step, make the reactor rotate clockwise 0.4 per minute, put raw materials into reactor automatically, close the feeding door tightly.

Second step, burn the fuel materials( like coal, wood, natural gas,oil etc ) in the furnace. The reactor will be heated slowly. when the temperature reaches nearly 180℃, the oil gas will come out and then go to the cooling system and liquefying to oil.Some incondensable gas which can’t cooling down will flow to furnace through a pipe which can be used to heat the reactor.

In this way, you can save much more energy as you use energy for heating only in the first 2 hours. After the first 2 hours, the main fuel is gas. After pyrolysis, all the oil gas will come out from reactor, the temperature will falling down. Then make the rotate anticlockwise, carbon black discharging begins.

Last step(for waste tires),when the temperature falls to 50℃, worker can open the door of the reactor and take steel wire out.

Easy to understand used tire recycling plant working process as below:

1. Waste plastic refining flow: automatic feeding → catalytic cracking→ oil-water separation → cooling liquid → crude oil → flammable gas recovery → flammable gas combustion → desulfurization and dust removal
2. Waste tires refining flow: automatic feed → catalytic cracking → oil-water separation → cooling liquid → carbon black emission → carbon black processing → crude oil → flammable gas recovery → flammable gas combustion → desulfurization removal.

used tire recycling plant

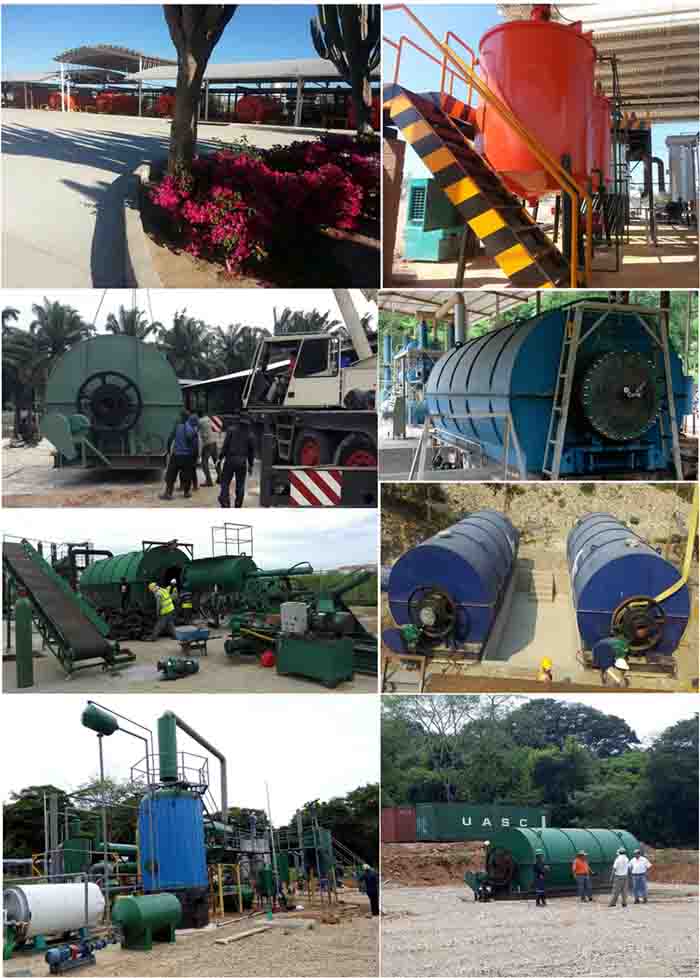

Used tire recycling plant installed different country

Place of OriginHenan, China (Mainland)
Brand NameDOING
Model NumberDY-1-6
typetire recycling plant
tire machine typetire recycling plant
land require200 sqm
coloraccording to customer’s request
modal6 ton
one batch time16-20 hour
Price:FOB USD 35000.00~70000.00 / Set
Minimum Order Quantity:1 Set
Packaging Details:according to customer’s request
Delivery Time:20 days after deposit
Payment Terms:T/T, Western Union
Supply Ability:10 Sets per Month

If you wanna to get more details about Used tire recycling plant you can send E-mail to You can consult our professional engineer and specialized sales team with leave a message in below form.We will contact with you ASAP.You also can visit our factory in Henan,China.Get Detailed address.
