Palm Kernel oil expeller machine

Date:2014-12-03 17:50:25 / Oil Press Machine /Give me the price / Leave a message

Our palm kernel oil expeller machine is designed by our engineers, suitable for extracting palm kernel oil from palm kernel seeds. This machine consists of five parts: feeding hopper, gear box, pressing chamber, pressing screw and frame.

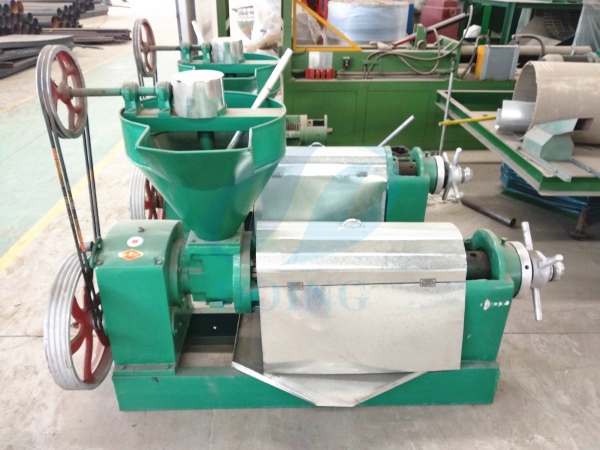

palm kernel oil expeller machine

Palm kernel oil expeller machine designed by our engineers


The specific parameter of our palm kernel oil expeller machine:


Capacity(kg/h)500 kg/h
Main Power (kw)30kw
Shaft Speed35-39r/min
Weight (kg)960kg
Size(mm)2020*700*1480mm
Gear ratio in gearbox115/38*15/52=1:8.78


Operation principle of our palm kernel oil expeller machine:


When the palm kernel oil expeller machine operating, prepared material enters extruding chamber from the hopper and then moves forwards by the rotating pressing screw and is pressed. Under  the high-pressure condition in the chamber, friction between material and screw, between material and chamber will be created, which also creates friction and relative movement among material particles.


On the other hand, root diameter of the pressing screw caries larger from one end to the other, hence. When rotating, it not only pushes particles moving forwards but turns them outwards as well, meanwhile, particles adjacent the screw  will rotation along with screw' rotating, causing every particle inside the chamber to possess different speed.


Therefore relative movement among particle creates heat which is necessary during manufacturing because of helping protein change property, damage colloid, increase plasticity, decrease oil's elasticity, resulting in high oil productivity.


Learn more: palm kernel oil mill plant   palm oil mill process machinery


Doing Group is a leading palm kernel oil expeller machine manufacturer which is specialized in pam oil and palm kernel oil production machine, palm kernel crushing machine and other palm kernel processing  machine. We design and manufacture palm kernel oil expeller machine for customer. Welcome to leave your message, and we will contact you quickly!
