Tire recycling pyrolysis plants

Pyrolysis plant:HOMEPAGE » Pyrolysis Machine Products » Pyrolysis Plant »Tire recycling pyrolysis plants
Tire recycling pyrolysis plants

Tire recycling pyrolysis plants

tire recycling plant

Tire recycling pyrolysis plants

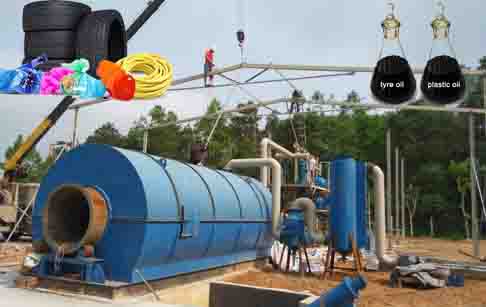

Tire recycling pyrolysis plants is an industry that converts waste plastic & tires & rubber and other waste materials into Pyrolysis Oil, Carbon Black & Hydrocarbon Gas. The tire recycling pyrolysis plants can reduce the volumes of the waste products and help human protect the environment.



tire pyrolysis plant

Tire recycling pyrolysis plants


The whole tire recycling pyrolysis plants is composed by 13 parts, which are reactor, transmission device, catalytic chamber, top cooling pipe, heavy oil tank, oil-water separator, condenser, light oil tank, safety device, vacuum system, dedusting system, draft fan, chimney.

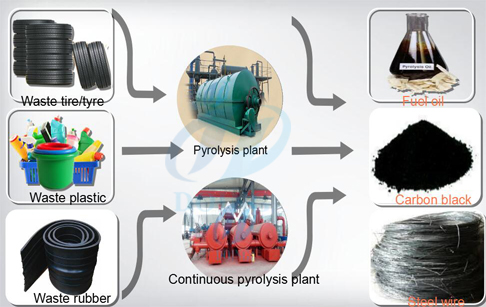

Tire recycling pyrolysis plants can proces raw material

tire recycling plant

Tire recycling pyrolysis plants can proces raw material


The two keys of tire recycling pyrolysis plants are reactor and cooling system.

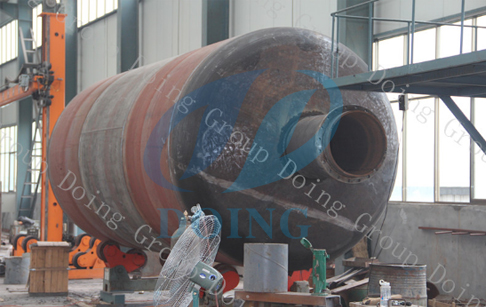

Tire recycling pyrolysis plants reactor


Reactor directly decides the tire recycling pyrolysis plants safety and service life. It is made by welded steel plate. So the quality of welding will have a direct impact on safety and service life. Therefore, we use automatic welding machine, X rays detection and heating treatment which will not only guarantee the quality of welding but also greatly improve working efficiency.

For cooling systems, there are two steps. Top cooling pipe is the first step. The second is condenser. We have three condensers. And there are 57 pipes in one condenser. Diameter is 48mm for one small pipe. The heat exchanging area is about 13square meters for one condenser. So the total cooling area is about 40 square meters, which will guarantee you a high oil yield.


Tire recycling pyrolysis plants final product application

For the combustible gas, it is recycled to heat the pyrolysis reactor. Using the recycled combustible gas to heat the pyrolysis reactor is a new innovation, and it is energy-saving.

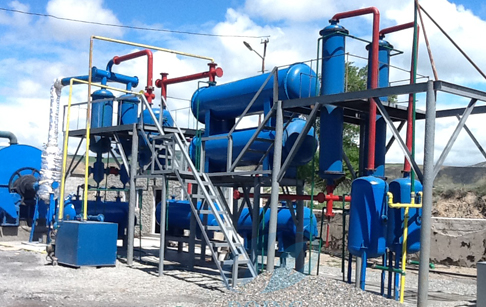

pyrolysis plant


Tire pyrolysis oil application


The tire pyrolysis oil can be sold directly as fuel. Or be transformed into gasoline or diesel by the tyre oil distillation plant. The refined tyre pyrolysis oil can be used for heavy oil generator to produce electricity.

Carbon black may be reprocessed into color master batch or coal or refractory briquette. You can also increase the quality of the pyrolysis carbon black with our carbon black processing plant for sale.

The steel wire you get from the waste tires can be sold directly. It can also be reprocessed into steal bloom by hydraulic press-packing.
