Waste tyre recycling pyrolysis plant

Date:2013-11-26 11:37:10 / Pyrolysis Plant


waste tyre reycling pyrolysis plant

Waste tyre recycling pyrolysis plant

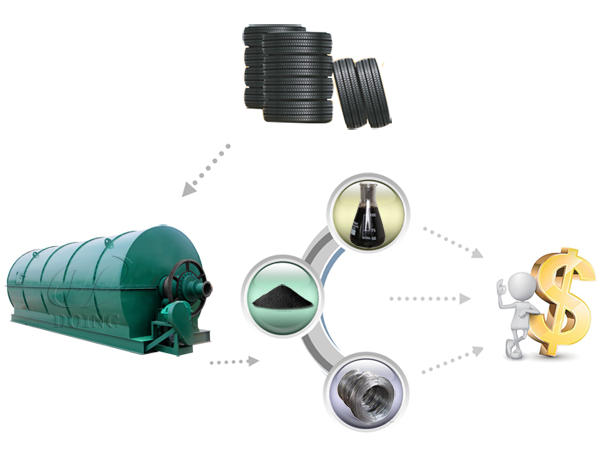

Waste tyre recycling pyrolysis plant of Doing is to convert waste tyre into fuel and energy. The raw material of waste tyre recycling pyrolysis plant is waste tyre, waste plastic and waste rubber and so on. And the final products of waste tyre recycling pyrolysis plant is fuel oil, carbon black, steel wire and exhaust gas.


Working process of Doing’s waste tyre recycling pyrolysis plant are as following:


Demonstration animation of waste tyre recycling pyrolysis plant working process

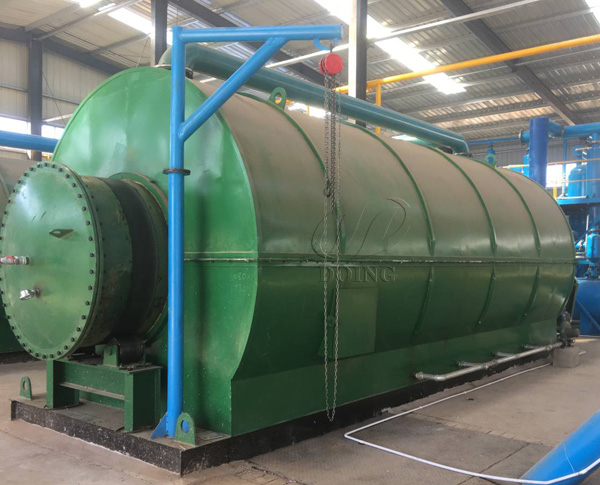

1. Put waste tyres into reactor, close feeding door, and make reactor rotate clockwise 0.4r/min.
2. Burned the fuel material (coal, wood, natural gas or oil) in the furnace. Reactor will be slowly heated, when the temperature reach around 180℃, oil gas will come out, then go to cooling system and get liquid oil. Some incondensable gas which can’t be cooled down will be lead to furnace through a gas pipe. It will be used to heat reactor which can save your energy. Only the first 2 hours use energy for heating. After the first 2 hours mainly use gas, little energy is OK. After pyrolysis, all the oil gas come out from reactor, the temperature will fall down. Then make it rotate anticlockwise, carbon black discharging begin.
3. When the temperature droups to 50℃, worker can opened the door of reactor to take steel wire out.
4. And then you can start the next batch.


The output of Doing’s waste tyre recycling pyrolysis plant:


waste tyre recycling pyrolysis plant profit analysis

Profit analysis from Macedonia customer's 10T/D waste tyre recycling pyrolysis plant


Take one batch 10T waste tyre recycling pyrolysis plant for example, one day we can get:
a. Fuel oil: 45%*10t=4.5t, calculated at 400 USD per ton ,4.5t *400 USD =1800 USD
b. Carbon black: 35%*10t=3.5t.

   Carbon black have two uses:
   (1)direct sales :80 USD per ton ,3.5t*80 USD =280 USD
   (2)refined milling : calculated at 320 USD per ton, 3.5t* 320 USD =1120 USD
c. Steel wire: 13%*10t=1.3t, calculated at 128 USD per ton ,1.3t *128 USD =166 USD


The expense include the cost of buying waste tyres, heating fuel, power consumption, water consumption and required workers. The profit we can get from waste tyre recycling pyrolysis plant is about 2000 USD a day.

If you wanna to get more details about Waste tyre recycling pyrolysis plant you can send E-mail to market@doinggroup.com. You can consult our professional engineer and specialized sales team with leave a message in below form.We will contact with you ASAP.You also can visit our factory in Henan,China.Get Detailed address.
