Waste tire to fuel oil pyrolysis plant

Date:2018-05-31 15:40:27 / Pyrolysis Plant


waste tire to fuel oil pyrolysis plant

Waste tire to fuel oil pyrolysis plant


How to recycle tires into available energy? Maybe this is no longer a problem for us. Because  the waste tire to fuel oil pyrolysis plant can be used for converting tyre into fuel oil, carbon black and steel wire.



The working process of waste tire to fuel oil pyrolysis plant is described as follows:

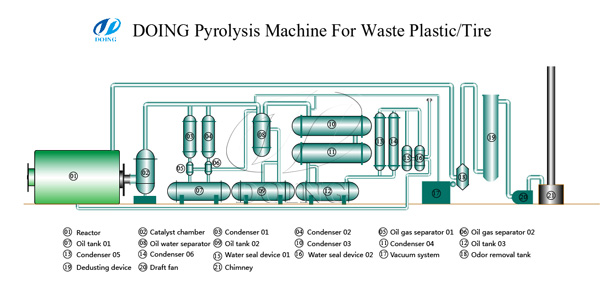

waste tire to fuel oil pyrolysis plant

Working flow chart of waste tire to fuel oil pyrolysis plant


(1) Put the waste tires into reactor and make reactor rotate clockwise 0.4-0.8 r/min. Seal the feeding inlet door tightly and make sure there is no gas leakage.


(2) Heat the reactor by using coal, charcoal, fuel gas, wood etc. as heating materials. The reactor will be slowly heated, and when the temperature reach about 250 degrees, the oil gas will be formed.


(3) The oil gas coming out from the reactor then go to condensing system and get liquid oil. The gas which can’t be liquefied under normal pressure will be designed to go back to combustion system through safety device. It can be recycled to heat the reactor as fuel, which will save energy for the whole tire pyrolysis process.


(4) After finishing oil production, the temperature of the reactor will cool down. When the temperature falls down to 40 degrees, we can get the carbon black and steel wire.



Application of the end products from waste tire to fuel oil pyrolysis plant :

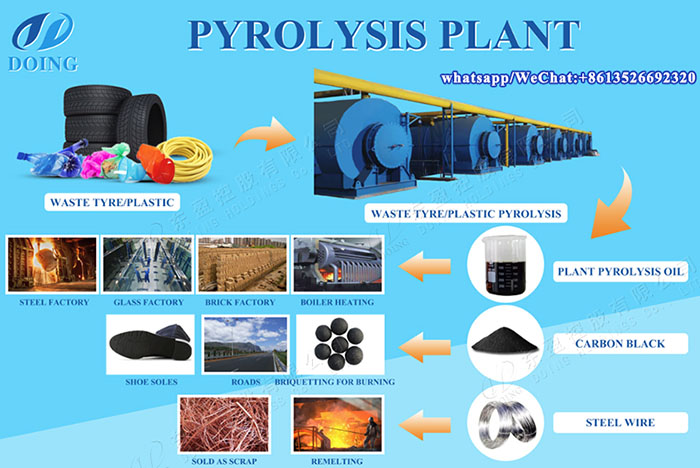

waste tire to fuel oil pyrolysis plant products

End products of waste tire to fuel oil pyrolysis plant


When the whole waste tire to fuel oil pyrolysis process is over, we can get pyrolysis oil, steel wire and carbon black. The fuel oil can be used as industrial fuel materials for burning, or further refined to diesel with waste oil distillation machine. The carbon black can be used for construction bricks with clay or used as fuel. The steel wire can be sold directly or recycled to produce new steel products.


Main features and advantages of Doing waste tire to fuel oil pyrolysis plant:


waste tire to fuel oil pyrolysis plant

waste tire to fuel oil pyrolysis plant


As the professional and leading pyrolysis equipment manufacturer in China, our waste tire to fuel oil pyrolysis plant have the following features: safety, energy saving and environmental protection.


1. Safety: this machine is equipped with mature safety devices, such as thermometer, pressure gauge,water seal device, vacuum system. Both hydroseal and vacuum system will prevent exhaust gas from going back to condensers and reactor. Thus, unnecessary accident can be avoided.


2. Energy saving: the extra gas that can’t be liquid oil under normal pressure will be recycled to heat the reactor as fuel. The gas generated in the pyrolysis process has more caroric value, which will save a lot of energy for the whole working process.


3. Environment protection: all parts are well-sealed, so air leakage can be avoided. In the dedusting system, three steps are used to dedust the hot smoke from pyrolysis reactor, which ensures the released gas is pollution-free and can be discharged into the air directly.

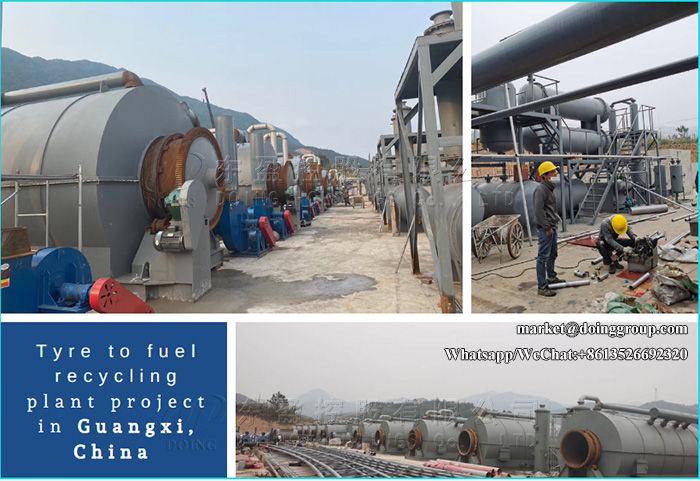

waste tire to fuel oil pyrolysis plant

Waste tire to fuel oil pyrolysis plant delivery



Since 2011, Doing has been devoting itself to the research of waste tire processing technologies, and has developed batch-type waste tire to fuel oil pyrolysis plant and fully continuous waste tyre pyrolysis plant. The machines have been exported to 36 countries at home and abroad. Current technologies, including heating, cooling, environmental protection, and safety control, have achieved various certifications and are recognized by customers in various countries.For more information about our plant and company, please feel free to contact us at any time.
