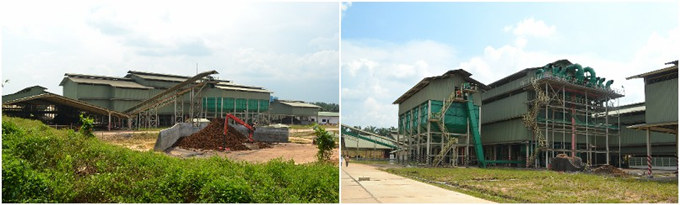

Crude palm oil processing plant
Crude palm oil processing plant can be devided into small scale and large scale, but their working process is same. The fresh palm fruit bunches are transported by truck to the factory. After a series of treatments, palm fruit is obtained, then palm oil is extracted, clarified and filtered to obtain crude palm oil.
Detailed introduction of every section in crude palm oil processing plant:
Station 01. Harvesting of Fresh Palm Fruit Bunches (FFB)
For extracting oil from palm fruits, you will have to start by harvesting fresh fruit bunchs and keeping them ready for the next stage of palm oil processing process. Make sure that they are ripe and in good condition if you are to get a perfect result.
Station 02. Sterilizing of Fresh Palm Fruit Bunches (FFB)
Sterilizing can prevent the palm fruit from being oxidation or rancidity. Through sterilizing, easier extraction of palm oil is achieved. The palm fruit sterilizer machine has vertical type and horizontal type. Henan Doing Company can design and manufacture them for you.
Station 03. Threshing of Fresh Palm Fruit Bunch (FFB)
In palm oil processing machine, threshing is finished in palm fruit thresher machine. It is a revolving drum structure. Through strong vibration and centrifugal separation rotation, palm fruits are separate from palm fruit bunches. You can contact us, if you want to buy. Henan Doing Company can provide 1-5tph small type and 15tph, 20tph large type.
Station 04. Digesting and Pressing of Palm Fruit
Palm fruit digester machine or palm oil digester machine pounds palm fruit into a paste and supplies heat to the palm fruit to facilitate the palm oil pressing process. There are vertical palm fruit digester machine and horizontal palm fruit digester machine. But vertical palm fruit digester machine is the mostly used and has better effect than horizontal palm fruit digester machine.
In pressing process, double screw palm oil press machine is used. DOING Brand double screw palm oil press machine is controlled by hydraulic system. It has two advantages: 1. The hydraulic system can make the movement of screw stable. 2. Easy to realize automatic work cycle and automatic overload protection.
Station 05. Clarification of Crude Palm Oil
After pressing, the crude palm oil is usually taken to the clarification section to remove impurities. It is in this stage that the final crude palm oil is received, observed and finally stored in a bulk tank.
Whether you have understood the crude palm oil processing plant working process or not? Any questions, you can leave a message. Doing Company will answer you soon.
