Plastic pyrolysis plant design

Date:2017-08-02 15:27:25 / Pyrolysis Plant

plastic pyrolysis plant design

Plastic pyrolysis plant design


Plastic has changed our everyday life. We are involved with plastic or plastic made products in various ways. Plastic plays an important part in our life from morning alarm clock to dinner food table, from coffee cup to desktop PC, from the car you drive to phone you use to talk, from bus to airplane and so on. Plastics are using widely everywhere in our life. Plastic makes our life easier and better. But the palstic  also bring pollution to us. DOING plastic pyrolysis plant is designed to solve this problem, converting waste plastics into fuel and carbon black, which can not only solve the environmental pollution caused by plastic waste, but also turn black waste into renewable resources.


plastic pyrolysis plant design

Plastic pyrolysis plant design


Our Henan DOING has been working on the design and improvement of plastic pyrolysis plant for many years. With mature production technology and professional sales, engineers and installation team, through the unremitting technological innovation and following the market demand, we have installed machines in more than 40 countries around the world. The main components of this latest design plastic pyrolysis plant include pyrolysis plant reactor, condenser, dedusting system, safety device, PLC controlling system.


1. Pyrolysis plant reactor

plastic pyrolysis plant design

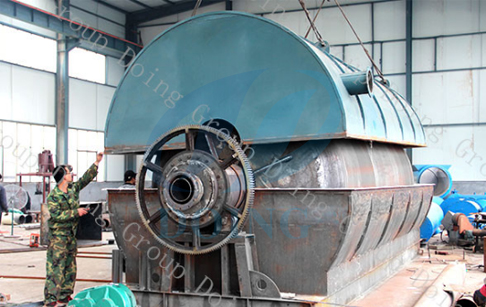

Pyrolysis plant reactor

It is the most important part of the  pyrolysis plant, because it is the place where plastic pyrolysis process takes place. Our reactor is made from Q345R steel, which can avoid it being burnt through, thus the service life of the reactor is longer. In addition, the reactor of batch and semi-continuous plastic waste pyrolysis machine is rotary, but for the fully continuous plastic pyrolysis plant, the reactor is fixed. So the heating efficiency and working efficiency can be increased basing on the different capacity.
2. Condenser

plastic pyrolysis plant design

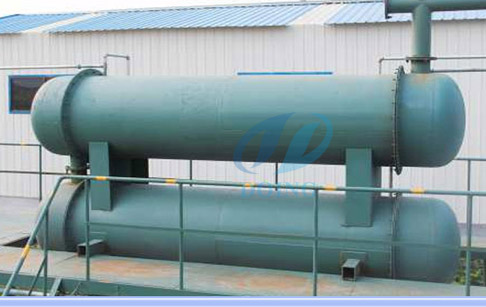

Plastic pyrolysis plant condenser

The new-design tubular condenser has the features of larger cooling area and better cooling effect. So it can improve the oil yield efficiency.
3. Dedusting system

plastic pyrolysis plant design

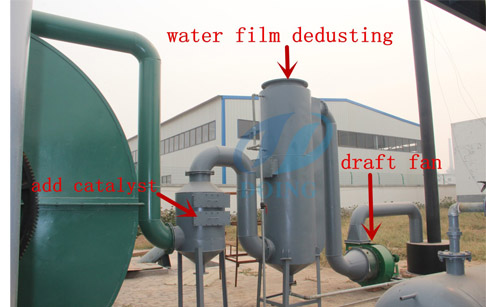

Dedusting system of latest design plastic pyrolysis plant

It mainly includes water sprayer, ceramic ring filter and washing chamber. It can remove the dust, dioxin and other component in the combustible gas, then the gas can be recycled to heat the reactor. Thus you can save a lot of energy cost. For the exhaust gas produced by burning the fuel, it can also be purified by the de-dusting system before emission.
5. Safety device

plastic pyrolysis plant design

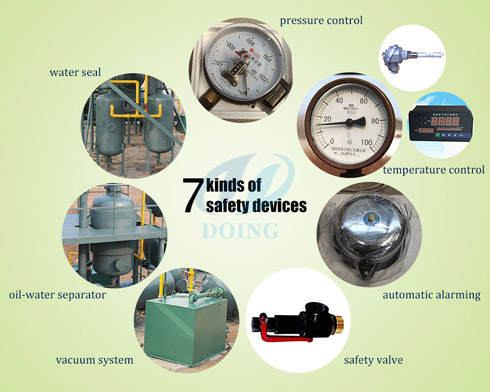

Safety device of latest design plastic pyrolysis plant

The latest design plastic pyrolysis plant is equipped with advanced safety devices, such as over temperature and pressure alarm system, auto pressure releasing system, protecting shell, fire fighting devices and so on, all of which can ensure the plant can work in a safe condition. At the same time, it can also protect the workers.

6. PLC controlling system

plastic pyrolysis plant design

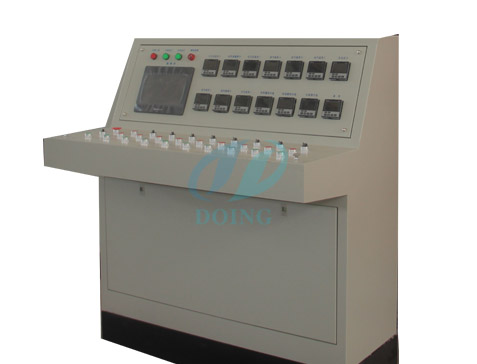

PLC controlling system of latest design plastic pyrolysis plant


This plastic pyrolysis plant design can achieve intelligent operation and it is very convenient to control the operation of the plastic pyrolysis plant in real time. Meanwhile, this PLC controlling system design saves a lot of labor costs for customers.

If you have any need in the pyrolysis plant design, please feel free to contact us. Our engineers will provide you with the most suitable plastic pyrolysis plant design according to your site area.




If you wanna to get more details about Plastic pyrolysis plant design you can send E-mail to market@doinggroup.com. You can consult our professional engineer and specialized sales team with leave a message in below form.We will contact with you ASAP.You also can visit our factory in Henan,China.Get Detailed address.
