How much does tyre pyrolysis plant cost?

Date:2017-01-03 15:33:30 / Pyrolysis machine FAQ/ Give me the price/Leave a message

With the popularity of the pyrolysis plant project, there are many types of tyre pyrolysis plant in the market now. The main concern of some interested investors is how much does tyre pyrolysis plant cost? This will not be a pure number. Because different types tyre pyrolysis plant has different cost. In order to facilitate the majority of customers to buy the tyre pyrolysis plant, DOING company combined with more than ten years of experience sorted out the following main factors affecting the tyre pyrolysis plant cost, for reference.

tyre pyrolysis plantMain factors affecting the tyre pyrolysis plant cost

1. Type of tyre pyrolysis plant

Generally speaking,pyrolysis plant can be divided into two types: batch tyre pyrolysis plant and continuous tyre pyrolysis plant. Batch tyre pyrolysis plant is easy to operate. If a batch of operations have not been completed, it can be suspended for adjustment of the project or for workers to take a rest. Continuous tyre pyrolysis plant can achieve highly automated continuous operation, to achieve high volume and efficient production. So, the cost of continuous batch tyre pyrolysis plant is higher than the cost of batch tyre pyrolysis plant.The type of tyre pyrolysis plant you choose should depend on your budget and the size of your project.

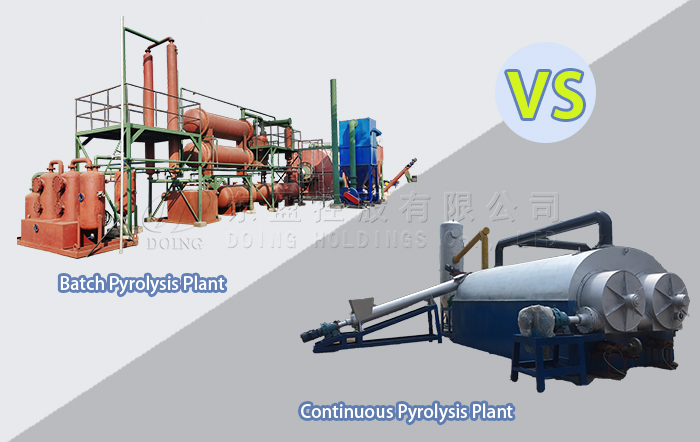

pyrolysis plantTyre pyrolysis plant type

2. Capacity of tyre pyrolysis plant

There are also different capacity for batch tyre pyrolysis plant and continuous tyre pyrolysis plant. For example, continuous tyre pyrolysis plant has 20 tons, 30 tons and 50 tons, while batch tyre pyrolysis plant has 1 ton, 5 ton, 10 ton, 12 ton, 15 ton and so on. Different capacity of tyre pyrolysis plants have different cost. The larger of the capacity, the larger of the reactor, and the higher demand for the steel usage and labor costs.

3. Manufacture material of tyre pyrolysis plant

Our tyre pyrolysis plant is mainly made of steel. As we all know, different steels have different costs. Some tyre pyrolysis plant manufacturers may use ordinary carbon steel on the reactor, so the cost will be greatly reduced, but the life cycle of the reactor will be greatly reduced. Our tyre pyrolysis plant uses professional boiler plates, which cost a lot, but the service life can reach 6~7 years. Stainless steel can also be used as a raw material according to customer requirements, so the cost of the tyre pyrolysis plant will be higher.

tyre pyrolysis plant costManufacture material of tyre pyrolysis plant

4. Design of the tyre pyrolysis reactor

The pyrolysis reactor is one of the main parts of tyre pyrolysis plant. Usually, its service time determines the service time of the tyre pyrolysis plant.

There are 2 different design of pyrolysis reactor in the market. First one is the reactor with standard pressure vessel with round head, which has good tolerance to pressure and needs professional manufacturer to manufacture, but the cost will be relatively higher. The other one is the flat head reactor, which is easier for loading, but its pressure tolerance is not as good as the round head reactor .Our reactor with standard pressure vessel and round-shape design

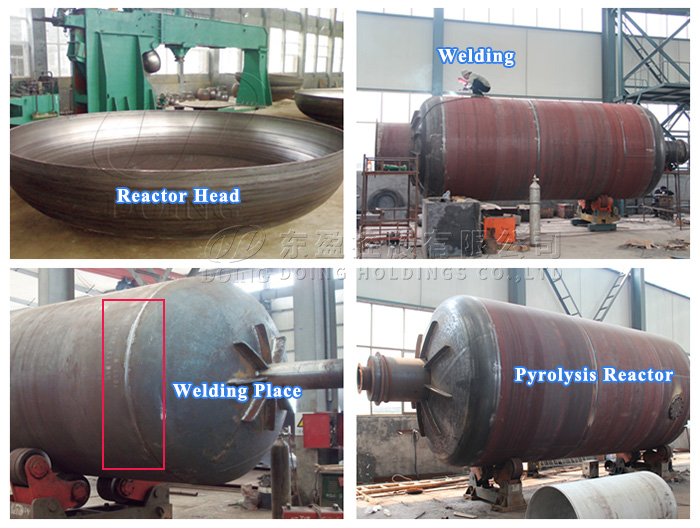

tyre pyrolysis plantRound head pyrolysis reactor

5. Type of cooling system

At present, there are two main types of cooling systems for tyre pyrolysis plant, one is a water tank cooling system, the other is a tube condensing system, also known as professional heat exchanger.The cooling system of water tank is simple in design, less steel material, and the cooling effect is general, so the cost is lower.The tube condensing system adopts fully closed condensing multiple tube design, which can effectively improve the cooling efficiency and oil yield, thus resulting in high cost.

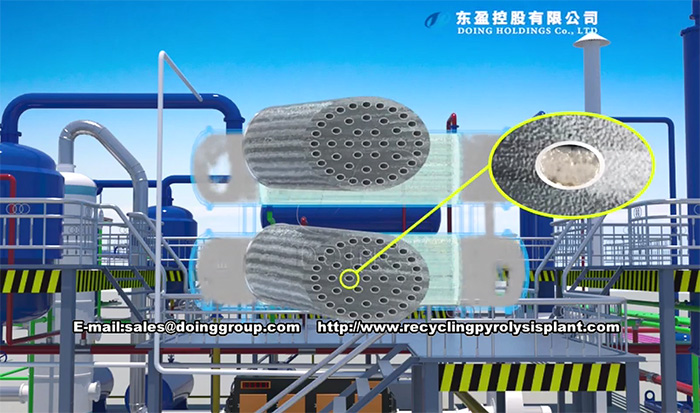

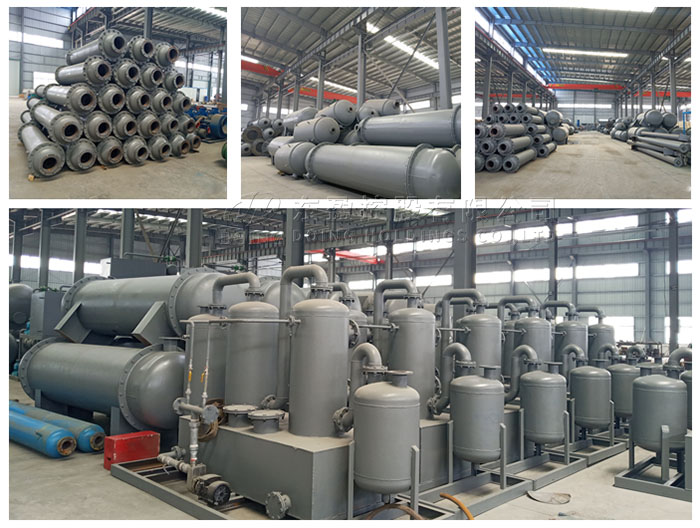

tyre pyrolysis plantMultiple tube condenser for high cooling effection

6. Environmental protection configuration of tyre pyrolysis plant

In order to meet the environmental protection of tyre pyrolysis plant, some manufacturers specially designed environmental protection devices. For example, DOING company has designed the decolorization and odor removal system and desulfurization tower, which can efficiently remove the harmful gases in the exhaust gas, so that the emission of gas can meet the standard.Therefore, the cost of tyre pyrolysis plant with environmental protection configuration will be higher than ordinary.

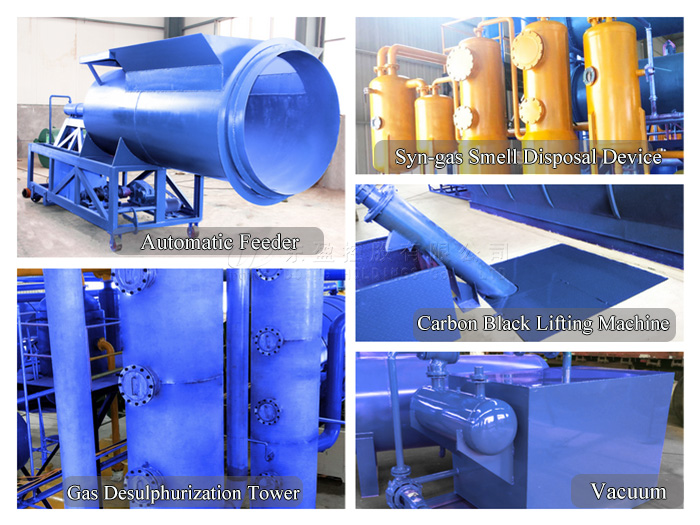

tyre pyrolysis plant cost Configuration of tyre pyrolysis plant

In addition to the above factors, the type of supplier and the availability of after-sales service will also affect the cost of tyre pyrolysis plant.Therefore, when buying tyre pyrolysis plant, you can't just choose the cheap ones. You should consider a variety of factors to choose the most suitable equipment. You can also tells us your specific requirements, and our professional project manager will guide you to choose what kind of tyre pyrolysis plant.

As a tyre pyrolysis plant manufacturer with more than 10 years of experience, DOING adopts the design of professional pressure round head and has good pressure bearing. In addition, we also use professional tube condensing to ensure 40%~45% oil yield and easy maintenance. And our factory accepts customization and can manufacture equipment according to different requirements. You can see via the below picture that our tyre pyrolysis plant has been exported to more than 60 countries around the world.

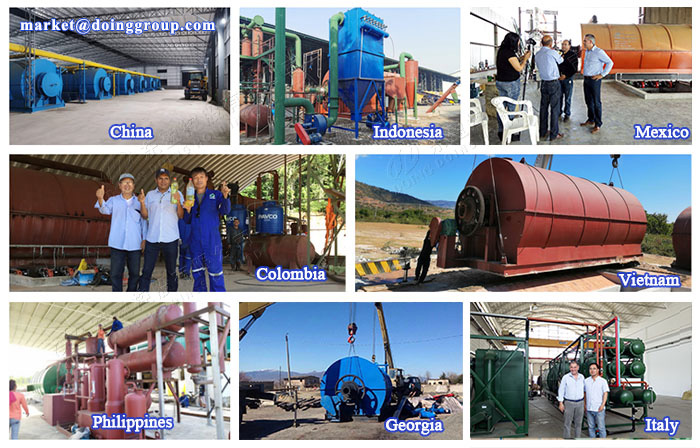

pyrolysis plantDOING tyre pyrolysis plant project in different countries

From the above introduction, it can be seen that we take transparent measures on the tyre pyrolysis plant cost. Since we have been pursuing the quality of tyre pyrolysis plant and the reputation of customers, choosing us will be the most sensible choice for you. Welcome to your inquiry.
