Pyrolysis of tyres to oil ?

Date:2013-06-25 22:10:12 / Pyrolysis machine FAQ

tyre to oil

Pyrolysis of tyres to oil machine

The waste tyre pyrolysis plant is a green technology to solve tyre and other environment pollution which are becoming the serious issues nowadays and it is the meaningful industry. The tyre pyrolysis oil, one kind of end products extracted from the pyrolysis process, is often used for producing heat, electricity, steam and so on.



Pyrolysis of tyres to oil?

tyre pyrolysis plant

Pyrolysis of tyres to oil pyrolysis waste tyre to oil process

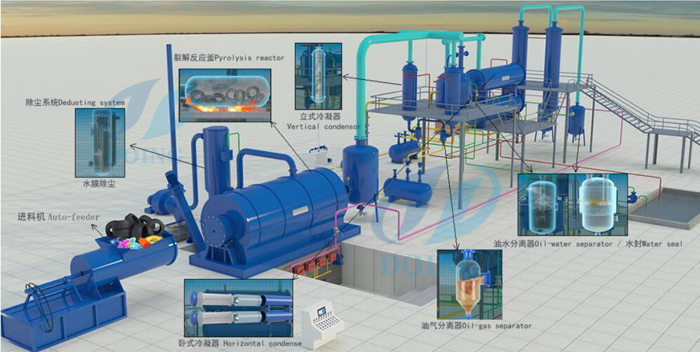

1. Put pre- processed tyres into the reactor by full-automatic feeding machine(taking the fully continuous tyre pyrolysis plant for example) after they are delivered into stock bin by conveyor belt. Total quantity shall be controlled under 2/3 of reactor for rotating more smoothly. Then close the feeding door and open the heating system.


2.Two stages are included for tyre pyrolysis process. From 100 ℃ to 250 ℃ is the preliminary stage , and the oil gas shall be released at 200 ℃  . From 280 ℃ to 350 ℃ is the top output rate interval. Oil gas will be collected into manifold, and the heavy particles and oil will be gathered and liquefied in center of manifold and drop down into the heavy pyrolysis oil tank. The lighter gas will rise up to the multi-functional oil condensers, then be liquefied into oil and stored in the oil tank. The incondensable gas through desulfuration and de-dusting by hydroseal will be led to the furnace for heating.

3. Cool down the reactor after making sure all above mentioned have been done. The carbon black will be discharged when the temperature reaches at 40 ℃. The end products you can get from the waste tyre pyrolysis plant are tyre pyrolysis oil, carbon black, steel wire and combustible gas.
