Project report of tyre pyrolysis plant

Date:2013-06-25 18:46:51 / Pyrolysis machine FAQ

pyrolysis plant

Waste tyre pyrolysis plant

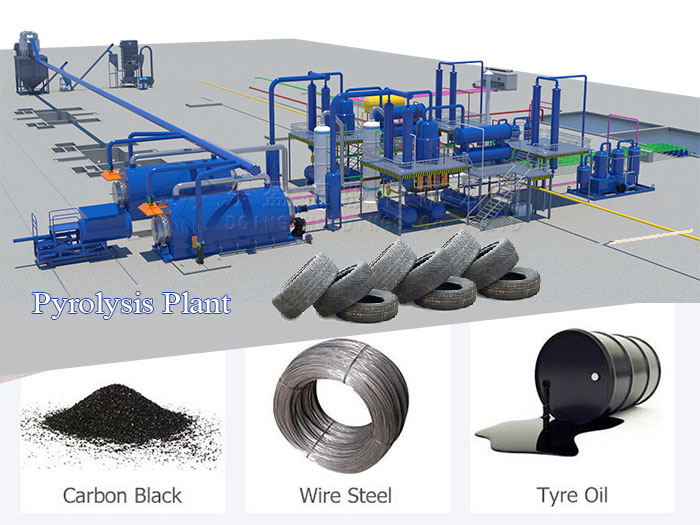

The waste tyre pyrolysis plant have a lot of main feature:high capacity ,high degree of automation ,high quality,environmental and efficient,can live longer .With the development of industry ,countries stepped up environmental governance,especially for waste disposal.Tyre pyrolysis plant can put this waste turn into wealth .The waste tyre pyrolysis plant can pyrolysis waste tyre to fuel oil ,carbon black and steel wire.

tyre pyrolysis plant


Waste tyre pyrolysis plant

With the rapid development of China's automobile industry, there are 1.5 billions waste(scrapped) tyres/tires all over the world. Many countries are confronted with the problem that how to deal with increased waste tires/tyres. The main part of the waste tires-waste rubber, is the hazardous

waste acknowledged by the international. A large number of the waste tires/tyres are piled up in the open-air long time that occupied a large number area of the land. The waste tyre pyrolysis plant can process the problem very well.

Waste tyre pyrolysis plant tech data


NO.ItemsContents
1Equipment typeDY-1-6DY-1-8DY-1-10
2Raw materialtires/Plastictires/Plastictires/Plastic
3Structural formHorizontal rotationHorizontal rotationHorizontal rotation
424-hour Capacity6 ton8 ton10 ton
5Oil yield2.7ton3.6 ton4.5 ton
6Operating pressureNormalNormalNormal
7Material of ReactorQ245RQ245RQ245R
8Thickness of Reactor14mm14mm16mm
9Rotate speed of Reactor0.4turn/minute0.4turn/minute0.4turn/minute
10Total power12KW12KW23.5KW
11Mode of coolingWater coolingWater coolingWater cooling
12Cooling area of condenser40sqm40sqm65sqm
13Kind of transmissionInternal gear driveInternal gear driveInternal gear drive
14Noise dB(A)≤85≤85≤85
15Size of Reactor(D×L)2200×60002200×66002600×6600
16Working formIntermittent operationIntermittent operationIntermittent operation
17Delivery time20days20days20days
18Weight27T35T45T


Take one batch 10t waste tyre pyrolysis plant for example:
Total Output:
1. Crude oil: 45%*10t=4.5t
2. Carbon black: 35%*10t=3.5t

3. Steel wire: 13%*10t=1.3t


tyre pyrolysis plant

Waste tyre pyrolysis plant project case


No.ItemCost of Per  Batch
110 tons of waste  tires10T×USD  236/T=USD2360
20.4 tons of coal0.4T×USD126  /T=USD50.4
3Water and  electricity200×USD0.16=USD32
4Workers Salary4×USD16=USD64
5Total CostUSD2506.4

NO.ItemIncome
1Crude Oil10T×45%×USD709=USD3190.5
2Carbon Black10T×35%×USD82=USD287
3Steel Wire10T×13%×USD34=USD450
4Gross ProfitUSD3927.5
5Daily Net ProfitUSD3927.5-USD2506.4=USD1421.1
6Monthly Net ProfitUSD1421.1×25=USD35527.5
7Yearly Net ProfitUSD35527.5×10=USD 355275

If you wanna to get more details about Project report of tyre pyrolysis plant you can send E-mail to market@doinggroup.com. You can consult our professional engineer and specialized sales team with leave a message in below form.We will contact with you ASAP.You also can visit our factory in Henan,China.Get Detailed address.
