Waste tyre oil extraction machine is to conver waste tyre  into fuel.The raw material of waste tyre oil extraction machine is waste tyre ,waste plastic ,waste rubber and so on .After pyrolysis of waste tyre oil extraction machine ,we can get fuel oil ,carbon black ,steel wire and exhaust gas.

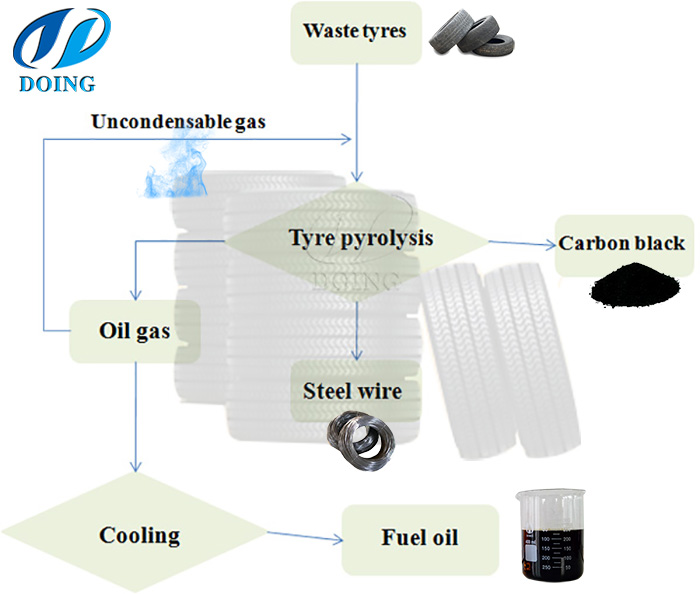

Waste tyre oil extraction machine working process

Waste tyre oil extraction machine working process

1. Put raw materials into reactor by auto-feeder, then heat the reactor with any one of the following fuel materials: coal, wood, natural gas, oil. Do not stop heating the reactor, when the temperature reaches nearly 250 degree Celsius, waste tyre will be transferred to oil gas.
2. The liquid oil will be cooled by condenser from oil gas and then collected by oil tank. Third, the exhaust gas which can not be cooled in normal pressure will be recycled to heat the reactor. In this way, you can not only saving energy, but also protecting environment.
3. Smoke produced by processing the tyres can achieve national emission standard through dual desulfurization and dusting removal device.
4. After you get oil, the temperature will be low, at this time, carbon black will be discharged automatically.
Last, when the temperature falls to 100 degree Celsius, worker could put steel wire hook to reactor to take steel wire out. After all these steps, you can start another batch.

Waste tyre oil extraction machine advanatge

pyrolysis plant

Waste tyre oil extraction machine

1. Safety.
We have some safe devices such as the pressure gauge, alarming ring, safety valve. at the same time we have the anti-back fire device which can avoid the fire back into the reactor.

2. Environment protecting.
If you come to visit our company to see the running plant, you cannot even see the vapor. as we have the dust removal device and dust removal pool.

3. Energy saving.
Our anti-back fire device can collect the exhaust gases which can be fuels after the oil is out so is very convenient and you can save the energy .at the same time, we have the catalyst
chamber which can reduce the temperature of the catalytic prolysis of the tires and plastics. so you can save lot's of energy. except this ,we have vacuum device which let the reactor be negative pressure. So you can image.

4. High degree of automatic.
We have many automatically devices such as: auto-feeder, carbon black elevator, oil pumping automatic, reducing pressure automatic


Waste tyre oil extraction machine tech data

Technical parameter of waste tyre oil extraction machine
No.ItemsContents
1Equipment typeDY-1-6DY-1-8DY-1-10
2Raw materialWaste tyreWaste tyreWaste tyre
3Structural formHorizontal rotationHorizontal rotationHorizontal rotation
424-hour Capacity6 ton8 ton10 ton
5Oil yield2.7-3.3ton3.6 -4.4ton4.5 -5.5ton
6Operating pressureNormalNormalNormal
7Material of pyrolysis ReactorQ245RQ245RQ245R
8Thickness of pyrolysis Reactor16mm16mm16mm
9Rotate speed of pyrolysis Reactor0.4turn/minute0.4turn/minute0.4turn/minute
10Total power19KW19KW19KW
11Mode of coolingWater coolingWater coolingWater cooling
12Cooling area of condenser100sqm100sqm100sqm
13Kind of transmissionInternal gear driveInternal gear driveInternal gear drive
14Noise dB(A)≤85≤85≤85
15Size of Reactor(D×L)2200×60002200×66002600×6600
16Working formIntermittent operationIntermittent operationIntermittent operation
17Delivery time20days20days20days
18Weight27T30T35T


Prepared by customer about waste tyre oil extraction machine
No.ItemConsumption
1Coal(for choice)500kg/day
2Wood(for choice)800kg/day
3Natural gas(for choice)100-150kg/day
4Oil(for choice)300-350kg/day
5Electricity244kwh/day
6Water(recycled)60㎥ /month
7Total power19kw
8Land area35m*15m

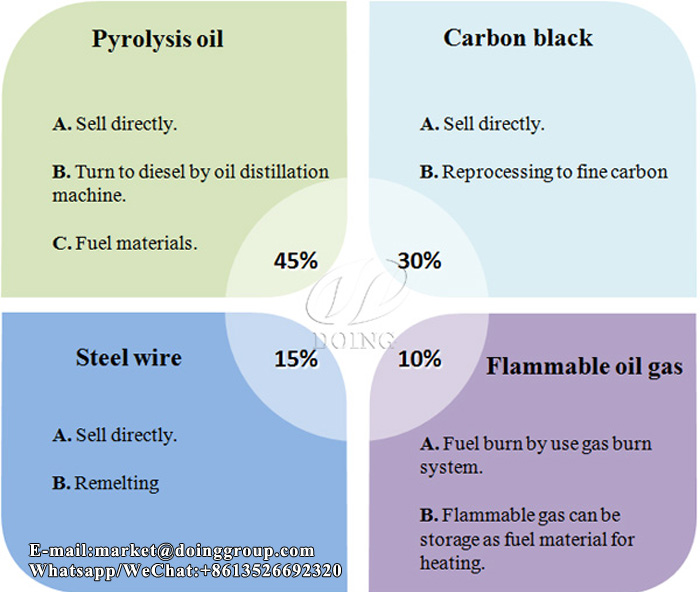

Waste tyre oil extraction machine fina product and application

Fuel oil application

1.Fuel Oil (40% to 45%)
The main application of oil products produced by our waste tyre oil extraction machine is the fuel oil that is wide used for industrial and commercial purposes. Such as power plant factory,glass factory,cement factory,ceramic fatory.

Exhaust gas (About 10%)
We get about 10% pyrolytic gases during pyrolysis process. The main component of this gases are methane (CH4), so we can not condense and store this gases. We use this gases to heat the reactor and we can use exceed gases for other heating application.

Steel Wire (10% to 15%)
The third product of waste tyre oil extraction machine is steel wire, the quantity of steel wire is about 10% to 15% according to tyre quality. It is very easy to sell steel wire scrape in local market.


pyrolysis plant

Carbon black application

Carbon Black  (30% to 35%)
The second product ofwaste tyre oil extraction machine  is carbon black. The quantity of carbon black is about 30% to 35% according to tyre quality. Carbon black can application to electric cable jacketing,black nylon bag,rubber additive.


Save

Prev Λ Convert plastic to oil recycling machine
NEXT ν Wate plastic to oil pyrolysis plant

If you wanna to get more details about Waste tyre oil extraction machine or the cost of related pyrolysis machine , you can send E-mail to market@doinggroup.com. You can consult our professional engineer and specialized sales team with leave a message in below form.We will contact with you ASAP.You also can visit our factory in Henan,China.Get Detailed address.
