10T waste tires recycling pyrolysis machine

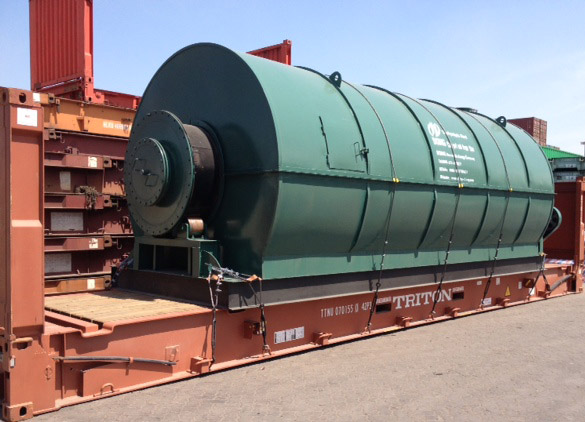

10T waste tires recycling pyrolysis machine to be shipped abroad at Qingdao Port

10T waste tires recycling pyrolysis machine to be shipped abroad at Qingdao Port

10T waste tires recycling pyrolysis machine
Type:DY-1-10
Processing Capacity:10T tires/24h
Reactor Size:D2600mm*L6600mm

Fully Automatic
10T waste tires recycling pyrolysis machineolysis plant could be able to Automatic feeding, automatic slag, automatic alarm, automatic decompression, automatic adjustment of negative pressure, exhaust automatic recovery. Only need two workers to control the whole system, can save your cost.

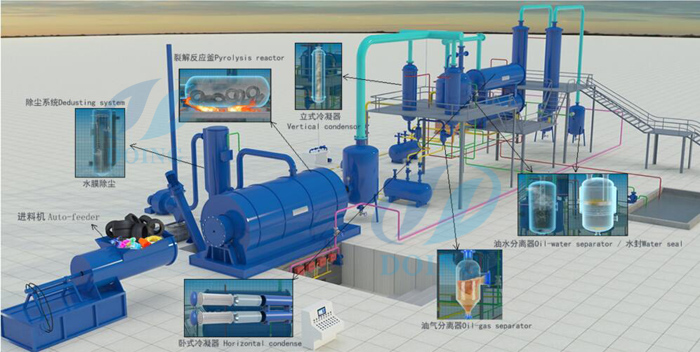

Waste tires recycling pyrolysis machine Working process:
1) feed the raw material into furnace automatically or manually, then seal the feed inlet system.
2) heat the reactor by burning the fuel material(coal,or wood,or natural gas ,oil ) in the combustion system.
the reactor will slowly become heat ,when the temperature reach around 250 degree Celsius, the oil gas will be formed.
3) After processed by our technology, the oil gas will go to cooling system for cold liquid oil.
the gas which can not become liquid under normal pressure , will be designed to go back to combustion system through safety device instead of the fuel material to burn the reactor, which is environmental friendly and can save you much energy.
4)After finished oil produce ,the temperature of reactor will be down,while,carbon black can be discharged automatically.
5) when the temperature fall down to 100 degree Celsius,worker could opened the door of reactor to discharge of steel wire.
6) Then can start to another batch working.

Technical parameter of DOING waste tire pyrolysis machine
NO.ItemsContents
1Equipment typeDY-1-6DY-1-8DY-1-10
2Raw materialtires/Plastictires/Plastictires/Plastic
3Structural formHorizontal rotationHorizontal rotationHorizontal rotation
424-hour Capacity6 ton8 ton10 ton
5Oil yield2.7ton3.6 ton4.5 ton
6Operating pressureNormalNormalNormal
7Marerial of RactorQ245RQ245RQ245R
8Thickness of Ractor14mm14mm14mm
9Rotate speed of Ractor0.4turn/minute0.4turn/minute0.4turn/minute
10Total power12KW12KW12KW
11Mode of coolingWater coolingWater coolingWater cooling
12Cooling area of  condensor40㎡40㎡53㎡
14Kind of transmissionInternal gear driveInternal gear driveInternal gear drive
16Noise dB(A)≤85≤85≤85
17Size of Reactor(D×L)2200×60002200×66002600×6600
18Working formIntermittent oprationIntermittent oprationIntermittent opration
19Delivery time20days20days20days
20Weight27T30T35T

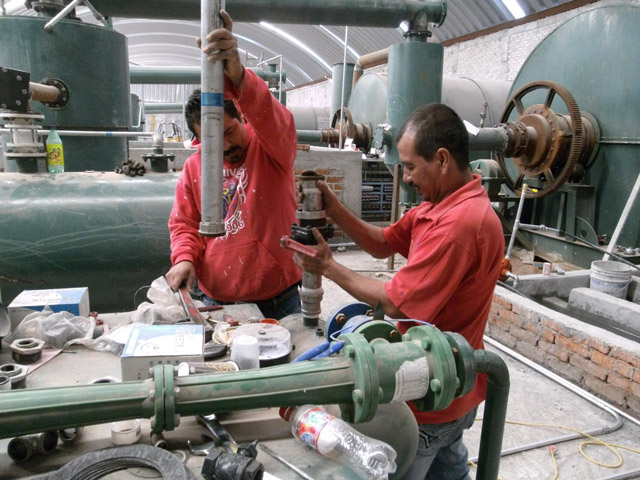

The scene of waste tires pyrolysis machine erection in Mexico
